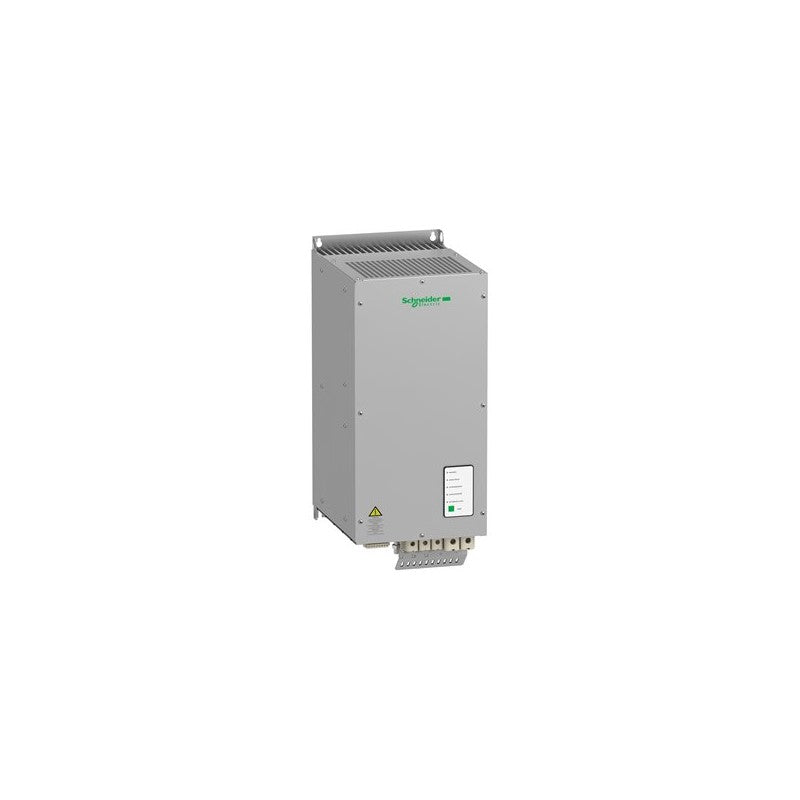

The Schneider Electric VW3A7202 is a network braking unit designed for integration with variable speed drives. This unit is part of the Altivar series, specifically engineered to manage regenerative energy and provide braking torque for motor control applications. It is suitable for systems requiring precise speed and torque regulation, contributing to the overall efficiency and safety of automated machinery.

Technical details

• Series: Altivar
• Product Type: Network Braking Unit
• Rated Power: 13 kW
• Voltage Rating: 400 V
• Functionality: Dissipates or returns excess energy generated during deceleration of variable speed drives.
• Compatibility: Designed for use with compatible Schneider Electric variable speed drives.
• Application: Essential for applications with frequent braking cycles or high inertia loads.

Applications & compatibility

This braking unit is commonly employed in industrial automation systems where variable speed drives are utilized for motion control. Applications include packaging machinery, material handling systems, and machine tools that require controlled deceleration and energy management. Its integration ensures stable operation and protects drive components from overvoltage conditions during braking.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A7202 or contact our technical team for cross-reference assistance with compatible Altivar components.
