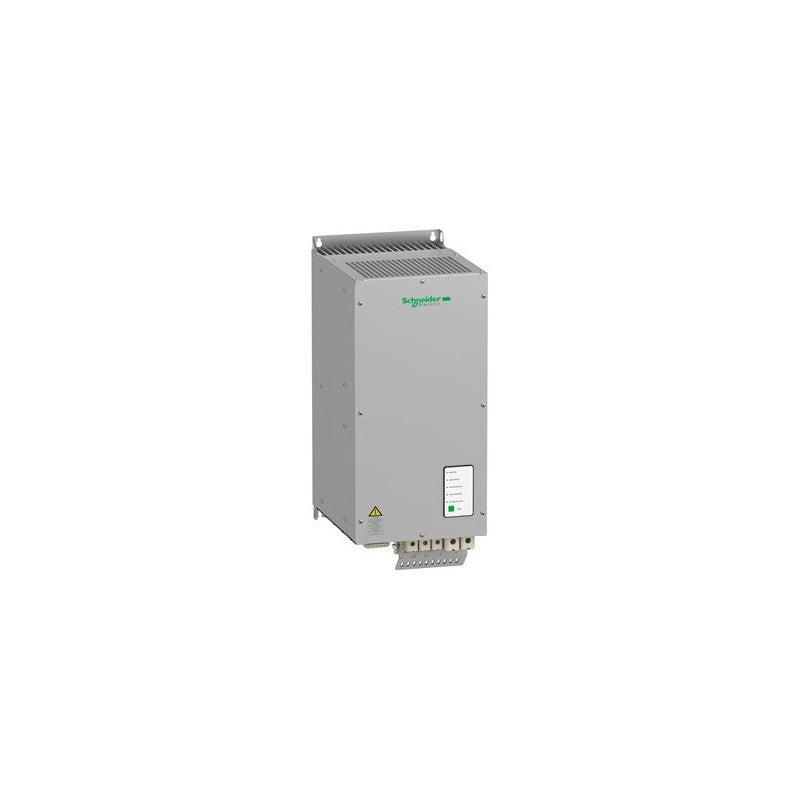

The Schneider Electric VW3A7204 is a network braking unit designed for integration with variable speed drives. This component plays a critical role in dissipating excess energy generated during deceleration or regenerative braking operations in motor control systems. It is engineered to handle significant power loads, ensuring the safe and efficient operation of automated machinery.

Technical details

• Series: Altivar
• Product Type: Network Braking Unit
• Rated Power: 33 kW
• Voltage Rating: 400 V
• Functionality: Energy dissipation for regenerative braking
• Compatibility: Designed for use with Schneider Electric variable speed drives
• Application Context: Motor control systems requiring braking capabilities

Applications & compatibility

This braking unit is commonly employed in applications where variable speed drives experience frequent deceleration or require controlled stopping. Typical use cases include packaging machinery, material handling systems, and industrial automation lines where precise speed control and energy management are essential. Its 33 kW rating makes it suitable for medium to heavy-duty industrial motor applications.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A7204 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
