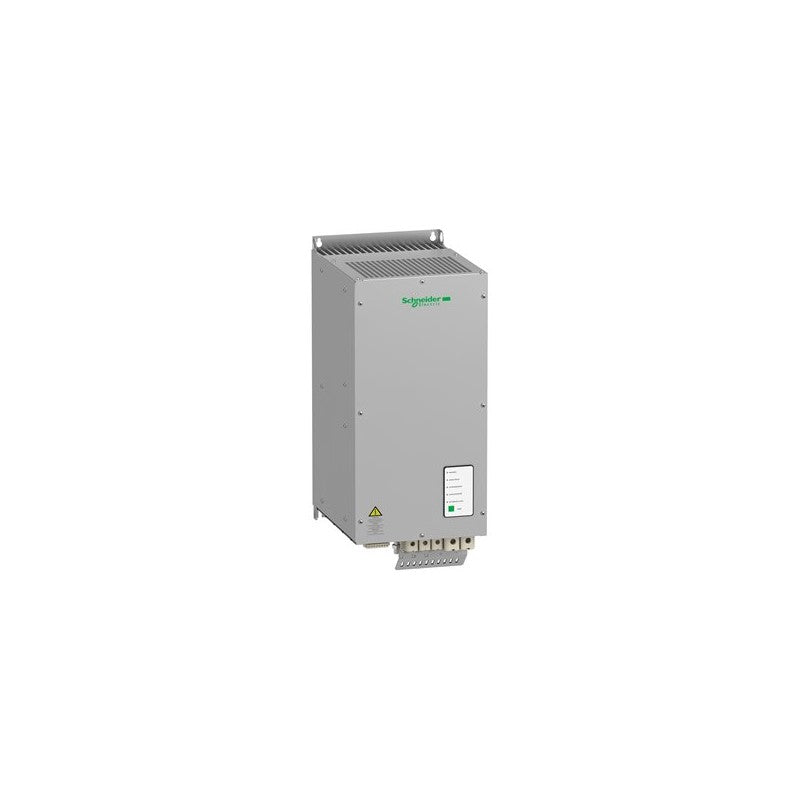

The Schneider Electric VW3A7205 is a network braking unit designed for integration with variable speed drives. This component is engineered to manage regenerative energy generated during deceleration in motor control applications, contributing to system stability and efficiency. It is a critical part of systems requiring precise control over motor speed and braking torque.

Technical details

• Product Type: Network Braking Unit
• Manufacturer Series: Altivar (implied by VW3 prefix, common for Schneider Electric VFD accessories)
• Rated Power: 45 kW
• Operating Voltage: 400 V
• Functionality: Dissipates or returns regenerative energy from variable speed drives
• Compatibility: Designed for use with compatible Schneider Electric variable speed drives
• Connection Type: Network braking
• Protection Rating: Verify against manufacturer datasheet for specific IP rating and environmental specifications.

Applications & compatibility

This network braking unit is commonly employed in industrial automation systems where variable speed drives are utilized for precise motor control and energy management. Applications include heavy-duty machinery, material handling systems, and process control equipment such as packaging lines, CNC machinery, and large conveyor systems that experience frequent deceleration cycles.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A7205 or contact our technical team for cross-reference assistance with compatible Altivar series components.
