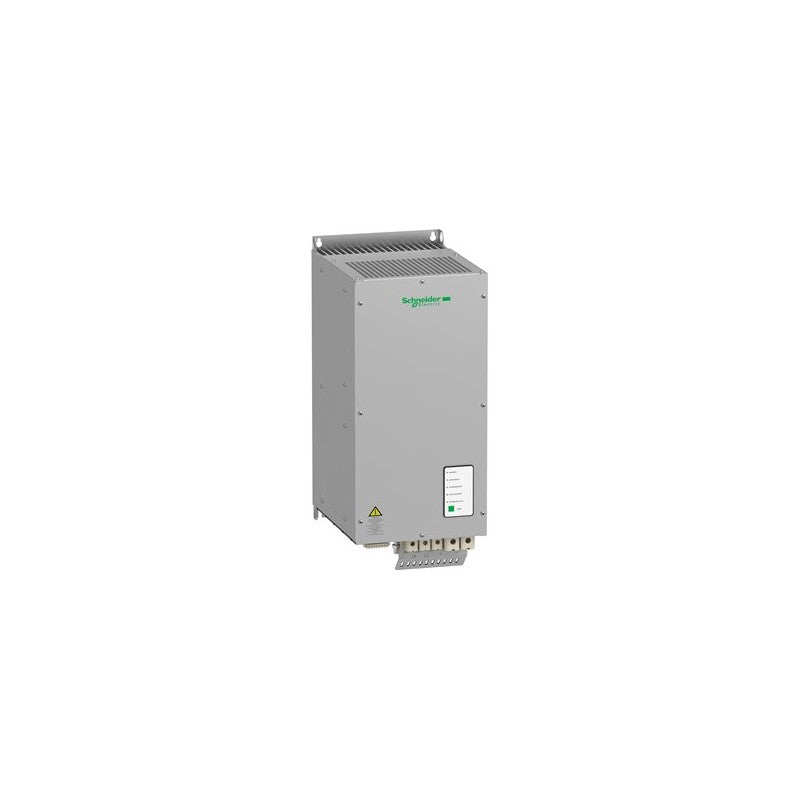

The Schneider Electric VW3A7206 is a network braking unit designed for use with variable speed drives. This component is engineered to manage regenerative energy generated during deceleration in motor control applications, ensuring stable operation and preventing overvoltage within the drive system. It is commonly integrated into industrial automation systems requiring precise motor speed control and energy dissipation.

Technical details

• Product Type: Network Braking Unit
• Rated Power: 70 kW
• Voltage Rating: 400 V
• Manufacturer Series: Altivar (implied by VW3 prefix, common for Schneider Electric variable speed drive accessories)
• Functionality: Dissipates excess energy generated by motor deceleration
• Application: Variable Speed Drive (VSD) systems
• Compatibility: Designed for integration with compatible Schneider Electric variable speed drives. For specific drive model compatibility, please consult the manufacturer's datasheet.

Applications & compatibility

This network braking unit is essential for applications where variable speed drives experience significant regenerative braking, such as in heavy machinery, material handling systems, and high-inertia loads. It is particularly suited for use in packaging lines, CNC machinery, and automated manufacturing processes where precise control and energy management are critical for operational efficiency and equipment longevity.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A7206 or contact our technical team for cross-reference assistance with compatible Altivar series components.
