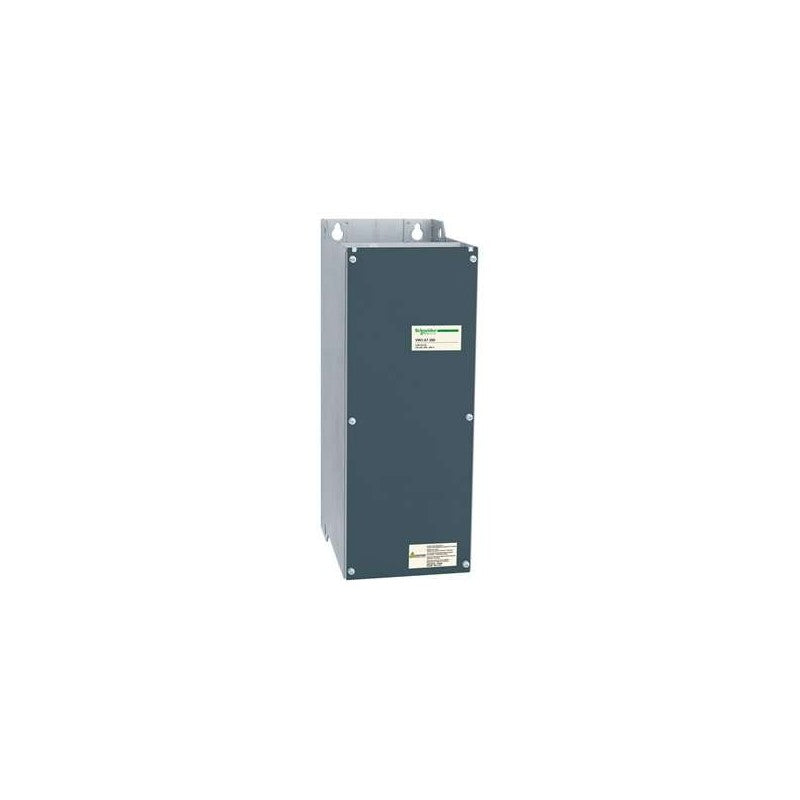

The Schneider Electric VW3A7261 is a line filter module designed to mitigate harmonic distortion in variable speed drive systems. This module is part of the Altivar series, commonly integrated into industrial automation setups to ensure cleaner power delivery to motor control applications. It is engineered to operate within a specific voltage range, contributing to the overall efficiency and longevity of connected equipment.

Technical details

• Series: Altivar
• Product Type: Line Filter Module
• Rated Power: 175 kW
• Input Voltage Range: 380...480 V AC
• Harmonic Distortion Reduction: Designed to reduce harmonic currents generated by variable frequency drives.
• Protection: Helps protect downstream equipment from voltage notching and other power quality issues.
• Cooling: Typically relies on natural convection or forced air, depending on the specific drive enclosure and ambient conditions.
• Mounting: Designed for integration within Schneider Electric drive cabinets or suitable enclosures.

Applications & compatibility

This line filter module is essential for applications requiring high power motor control where harmonic distortion is a concern. It is commonly found in heavy-duty industrial environments such as manufacturing plants, material handling systems, and process control applications. The VW3A7261 is compatible with specific Schneider Electric Altivar variable speed drives that are rated for 175 kW and operate within the 380-480V power supply range.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A7261 or contact our technical team for cross-reference assistance with compatible Altivar series components.
