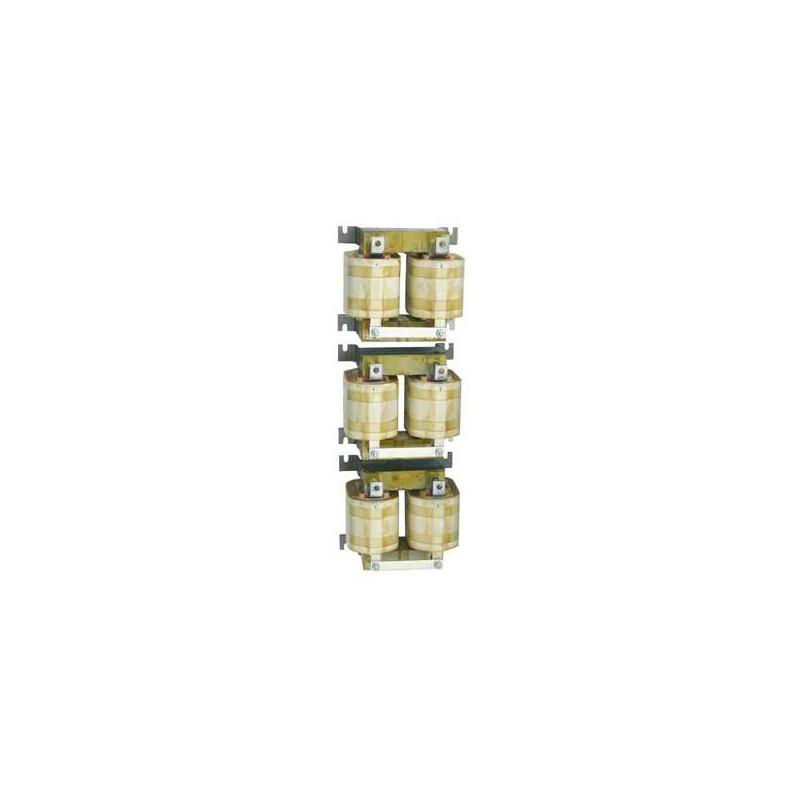

The Schneider Electric VW3A7269 is a line filter choke designed for high-power motor control applications. This component is integral to power quality management within variable frequency drive (VFD) systems, helping to mitigate harmonic distortion and protect sensitive equipment. It is part of the Schneider Electric Altivar series, commonly integrated into industrial automation setups requiring robust motor performance and electrical system integrity.

Technical details

• Product Type: Line Filter Choke
• Manufacturer Series: Altivar (implied by part number convention and manufacturer)
• Rated Power: 430 kW
• Voltage Rating: 500-690 V
• Function: Harmonic current reduction and motor protection
• Application: Designed for use with variable frequency drives (VFDs)
• Construction: Inductive component for AC power systems
• Operating Frequency: Suitable for standard industrial power frequencies (typically 50/60 Hz, verify with datasheet)

Applications & compatibility

This line filter choke is essential for applications demanding clean power delivery to AC motors controlled by VFDs. It is commonly found in heavy-duty industrial environments such as large pump and fan systems, material handling equipment, and manufacturing machinery where harmonic mitigation is critical for reliable operation and compliance with power quality standards.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A7269 or contact our technical team for cross-reference assistance with compatible Altivar series components.
