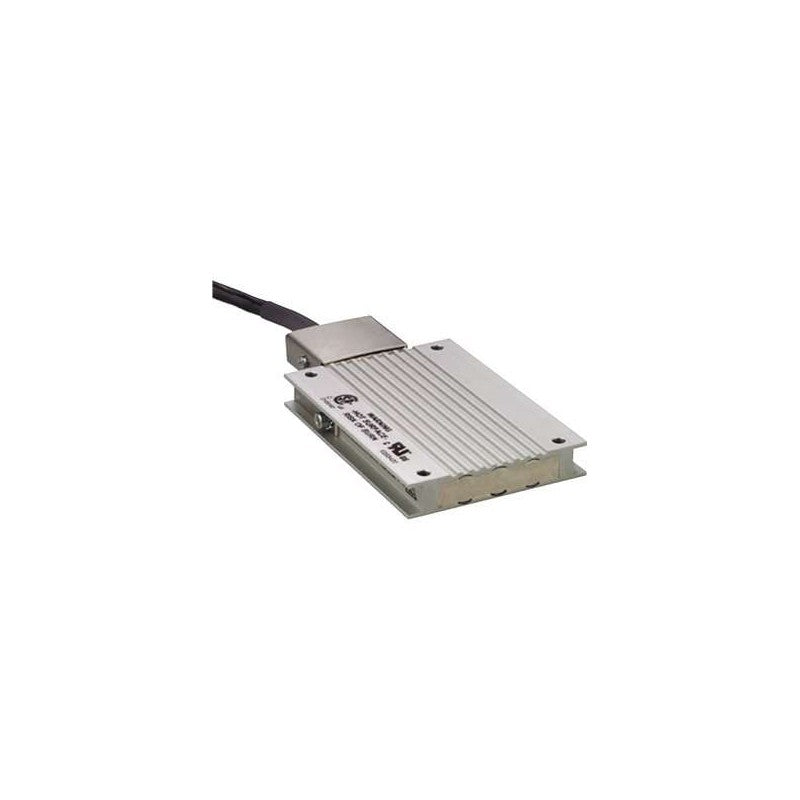

The Schneider Electric VW3A7605R07 is a braking resistor designed for use with Altivar variable frequency drives. This component is engineered to dissipate excess energy generated during regenerative braking operations, helping to protect the drive and connected motor. It is suitable for applications requiring controlled deceleration and energy management within industrial automation systems.

Technical details

• Series: Altivar Braking Resistor
• Resistance: 72 Ohms
• Power Rating: 100 Watts
• Cable Length: 0.75 meters
• Enclosure Rating: IP65
• Function: Energy dissipation for regenerative braking
• Connection Type: Cable with terminated ends

Applications & compatibility

This braking resistor is commonly employed in applications where frequent or rapid deceleration of motor loads is required, such as on packaging machinery, conveyor systems, and material handling equipment. It is compatible with specific Schneider Electric Altivar variable frequency drives that support external braking resistor configurations. Verify compatibility with your specific drive model and application requirements.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A7605R07 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
