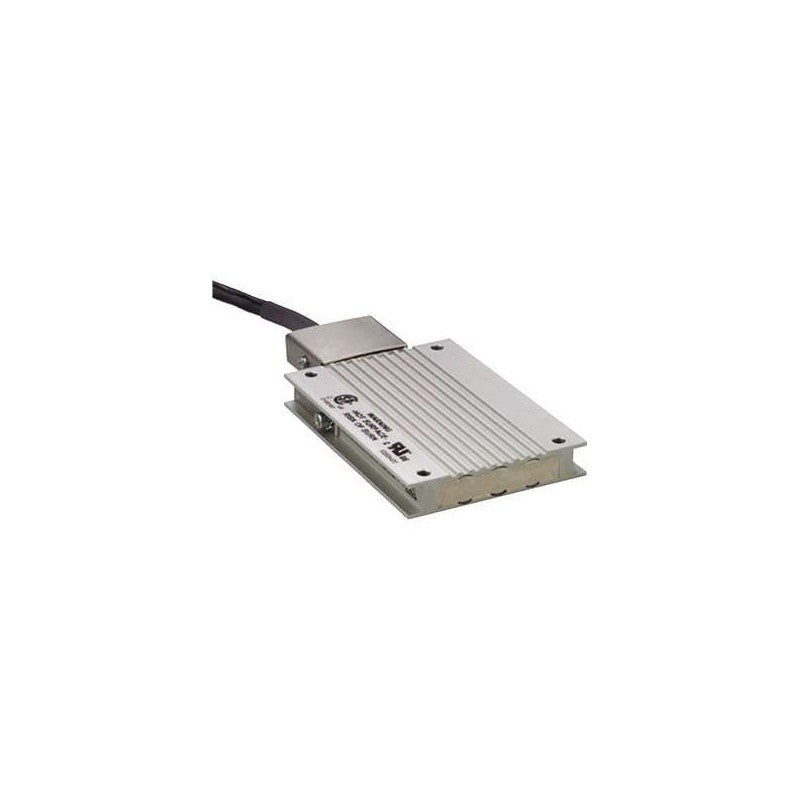

This Schneider Electric braking resistor is designed to dissipate excess energy generated by variable speed drives during deceleration. As part of the Schneider Electric Altivar series, this component is engineered for robust performance in demanding industrial environments. The resistor's specifications are critical for ensuring the safe and efficient operation of motor control systems, preventing overvoltage conditions and protecting drive components.

Technical details

• Product Type: Braking Resistor
• Resistance Value: 72 Ohm
• Power Rating: 100 W
• Cable Length: 3 meters
• Enclosure Rating: IP65
• Series Compatibility: Altivar Variable Speed Drives (verify specific model compatibility with manufacturer datasheet)
• Function: Energy dissipation during motor deceleration
• Construction: Designed for industrial environments

Applications & compatibility

This braking resistor is commonly employed in applications requiring frequent motor deceleration or where regenerative energy needs to be safely dissipated. Typical uses include packaging machinery, material handling systems, and automated assembly lines where precise speed control and rapid stopping are essential. Ensure compatibility with your specific Schneider Electric Altivar drive model by consulting the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A7605R30 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
