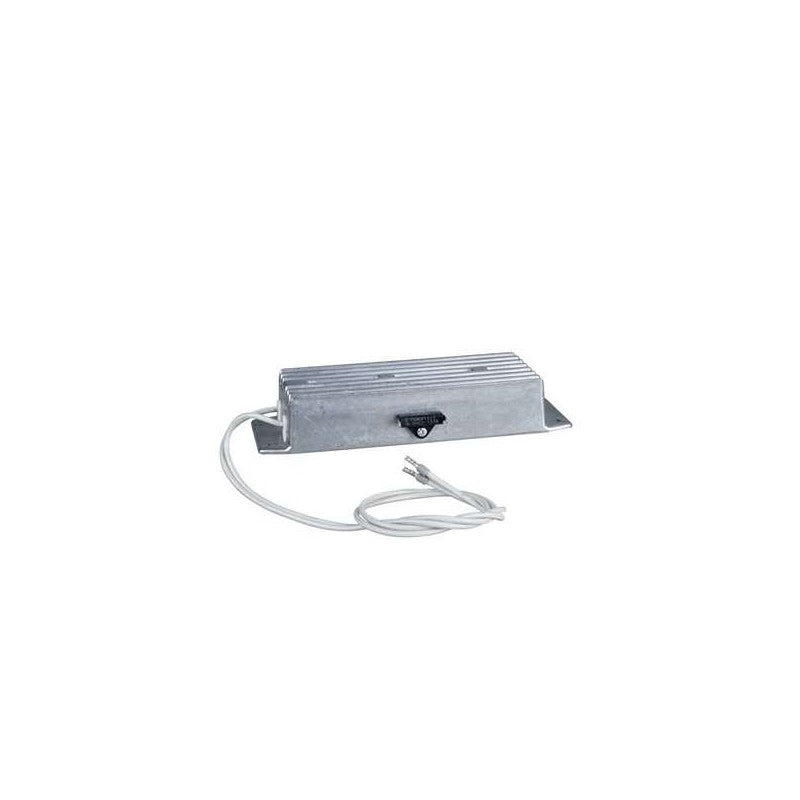

This Schneider Electric braking resistor, part of the VW3A7724 series, is designed to dissipate excess energy generated during motor deceleration in variable frequency drive (VFD) applications. It is engineered to manage braking torque and prevent overvoltage conditions within the drive system, ensuring reliable operation of connected machinery.

Technical details

• Product Type: Braking Resistor
• Manufacturer Series: VW3A7724
• Protection Rating: IP 00
• Resistance Value: 68 Ohm
• Power Dissipation: 28 W
• Application: Energy dissipation for VFD braking
• Construction: Designed for integration within compatible Schneider Electric drive enclosures or external mounting solutions.
• Functionality: Provides a resistive load to absorb regenerated energy from a motor during braking cycles.

Applications & compatibility

This braking resistor is commonly employed in industrial automation systems requiring controlled motor deceleration, such as those found in packaging machinery, material handling equipment, and machine tools. It is compatible with specific Schneider Electric variable frequency drives that support external braking resistor configurations. Verification of compatibility with your specific drive model is recommended.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A7724 or contact our technical team for cross-reference assistance with compatible Schneider Electric braking components.
