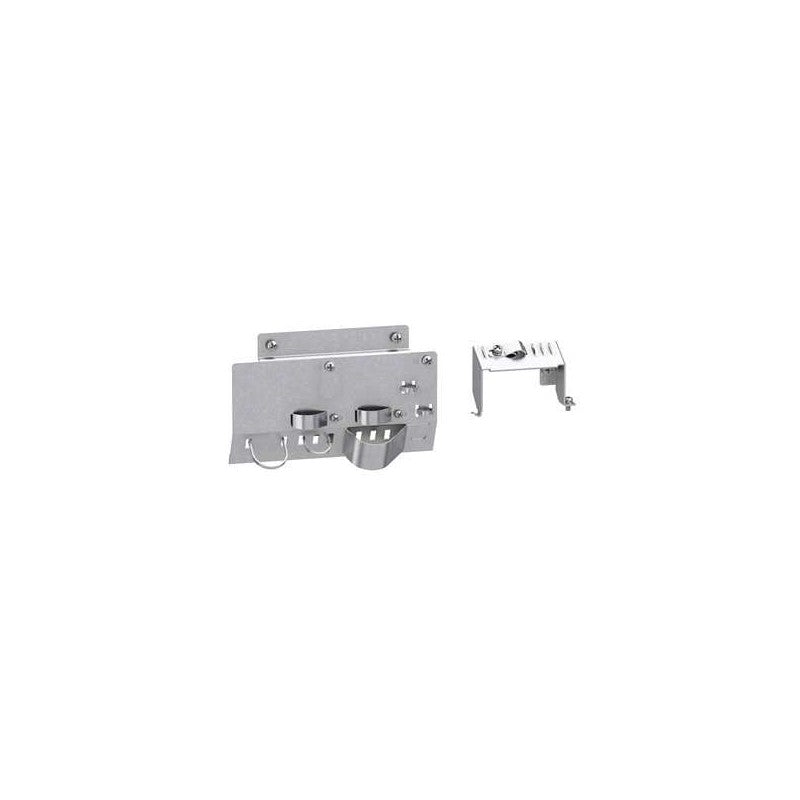

The Schneider Electric VW3M2106 is an EMC plate designed for specific drive enclosures. This component is part of the Opal HIP series, indicating its intended application within a particular range of Schneider Electric variable speed drives. The designation "SIZE 4 / Opal HIP size 6" specifies the physical dimensions and compatibility with corresponding drive frame sizes, ensuring proper fit and electromagnetic compatibility within the system.

Technical details

• Series/Family: Opal HIP
• Enclosure Size Compatibility: Size 4 (for drive), Size 6 (for HIP module)
• Function: Electromagnetic Compatibility (EMC) Plate
• Mounting: Top & Bottom
• Purpose: To mitigate electromagnetic interference within the drive system.
• Material: Typically constructed from conductive materials to provide shielding.
• Design: Engineered for precise fit within specified Schneider Electric drive enclosures.

Applications & compatibility

This EMC plate is essential for applications requiring stringent electromagnetic compatibility, commonly found in industrial environments such as packaging machinery, material handling systems, and automated manufacturing lines. It ensures that the drive system operates reliably without causing interference to other sensitive electronic equipment within the same facility.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3M2106 or contact our technical team for cross-reference assistance with compatible Opal HIP drive components.
