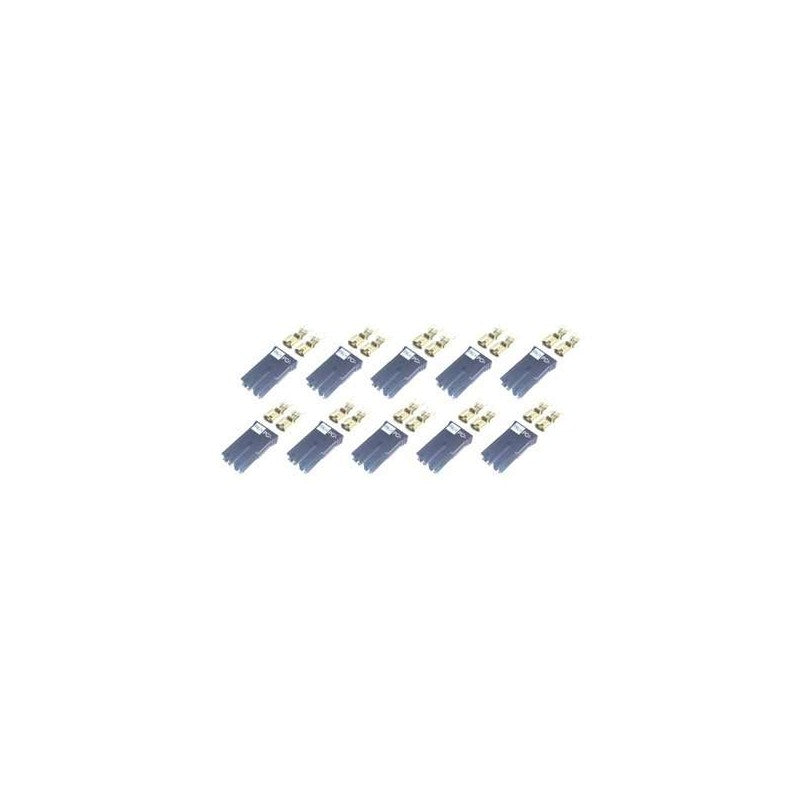

The Schneider Electric VW3M2207 is a DC Bus Connector kit designed for use with specific Schneider Electric variable speed drives. This kit facilitates the connection of multiple drive units within a shared DC bus configuration, enabling energy regeneration and optimized power distribution in complex automation systems. It is commonly integrated into industrial control panels for applications requiring synchronized motor control and efficient power management.

Technical details

• Product Type: DC Bus Connector Kit
• Manufacturer Series: Altivar Process (VW3M series designation)
• Compatibility: Designed for specific Schneider Electric Altivar Process drives. Refer to drive documentation for exact compatibility.
• Functionality: Enables the creation of a shared DC bus for multiple drives.
• Configuration: Facilitates energy transfer between drives, allowing for regenerative braking and power sharing.
• Connection Type: Utilizes robust connectors designed for industrial environments.
• Kit Contents: Typically includes necessary busbars, connectors, and mounting hardware for a complete installation.
• Voltage Rating: Compatible with the voltage class of the intended Altivar Process drives (e.g., 400V, 480V, 600V). Specific voltage rating should be confirmed against drive specifications.

Applications & compatibility

This DC Bus Connector kit is essential for applications involving multiple synchronized motor drives, such as those found in packaging machinery, material handling systems, and complex process control loops. It ensures efficient power management and can reduce overall system energy consumption by allowing drives to share regenerated energy.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3M2207 or contact our technical team for cross-reference assistance with compatible Altivar Process drive components.
