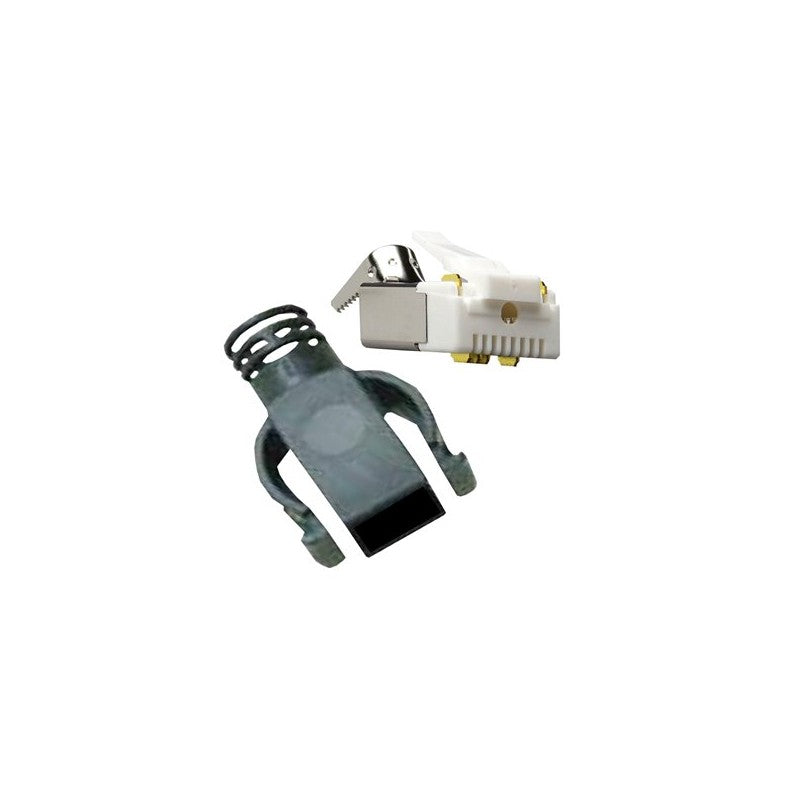

The Schneider Electric VW3M2208 is an encoder connector designed for drive-end connections, utilizing an RJ45 interface. This component is part of Schneider Electric's automation solutions, commonly integrated into variable speed drives and motion control systems where precise feedback is critical for motor control and positioning.

Technical details

• Connector Type: RJ45
• Application: Drive-end encoder connection
• Quantity: Set of 5 connectors
• Manufacturer Series: Likely compatible with Schneider Electric Altivar or Lexium drive series requiring encoder feedback. Specific series compatibility should be verified against manufacturer documentation.
• Cable Interface: Facilitates the connection of encoder cables to the drive unit.
• Signal Transmission: Designed to carry encoder feedback signals, such as incremental or absolute encoder data, to the drive for closed-loop control.
• Form Factor: Compact design suitable for integration within drive enclosures.

Applications & compatibility

This connector set is essential for applications requiring precise motor speed and position control, including CNC machinery, robotics, automated assembly lines, and material handling systems. It ensures reliable data transfer between the encoder and the Schneider Electric drive, enabling accurate performance in demanding industrial environments.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3M2208 or contact our technical team for cross-reference assistance with compatible Schneider Electric motion control components.
