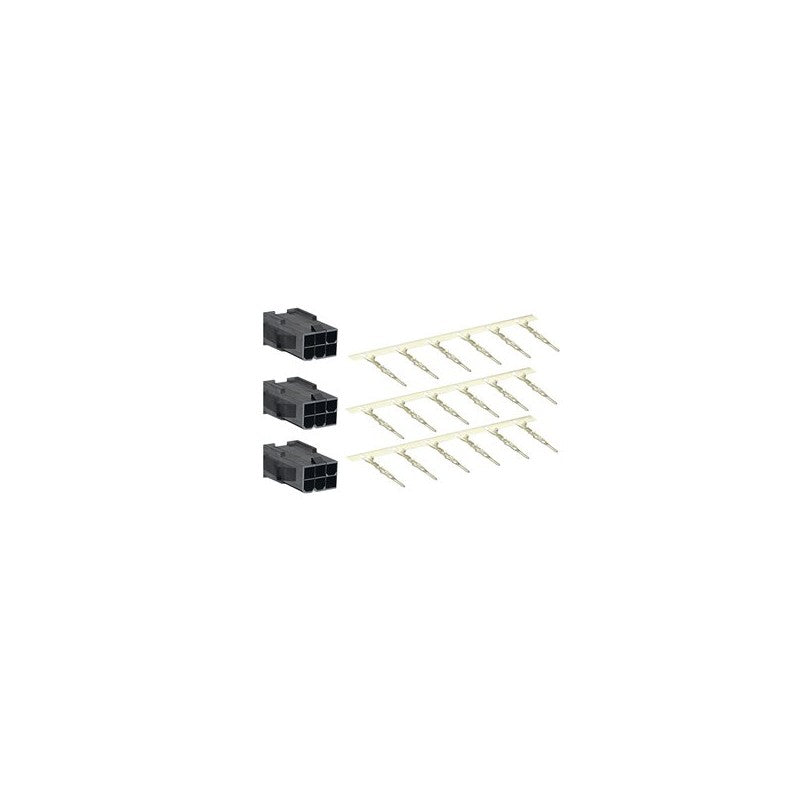

The Schneider Electric VW3M5D1F is a motor power connector kit designed for use with BCH2.B, BCH2.D, and BCH2.F series servo drives. This kit specifically facilitates connections for motors featuring integrated brakes, catering to motor frame sizes of 40mm, 60mm, and 80mm. It ensures a robust and reliable power interface for these specific drive configurations.

Technical details

• Product Type: Motor Power Connector Kit
• Manufacturer Series Compatibility: Schneider Electric BCH2.B, BCH2.D, BCH2.F
• Brake Connection: Integrated
• Compatible Motor Frame Sizes: 40mm, 60mm, 80mm
• Connector Type: Leads connection
• Functionality: Provides power and brake connections for compatible servo motors.
• Component Type: Replacement part for drive system power termination.

Applications & compatibility

This connector kit is essential for applications utilizing Schneider Electric's BCH2 servo drives with motors that incorporate braking systems. It is commonly found in automated machinery requiring precise motor control and holding torque, such as packaging equipment, material handling systems, and robotics where motor frame size compatibility is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3M5D1F or contact our technical team for cross-reference assistance with compatible BCH2 series components.
