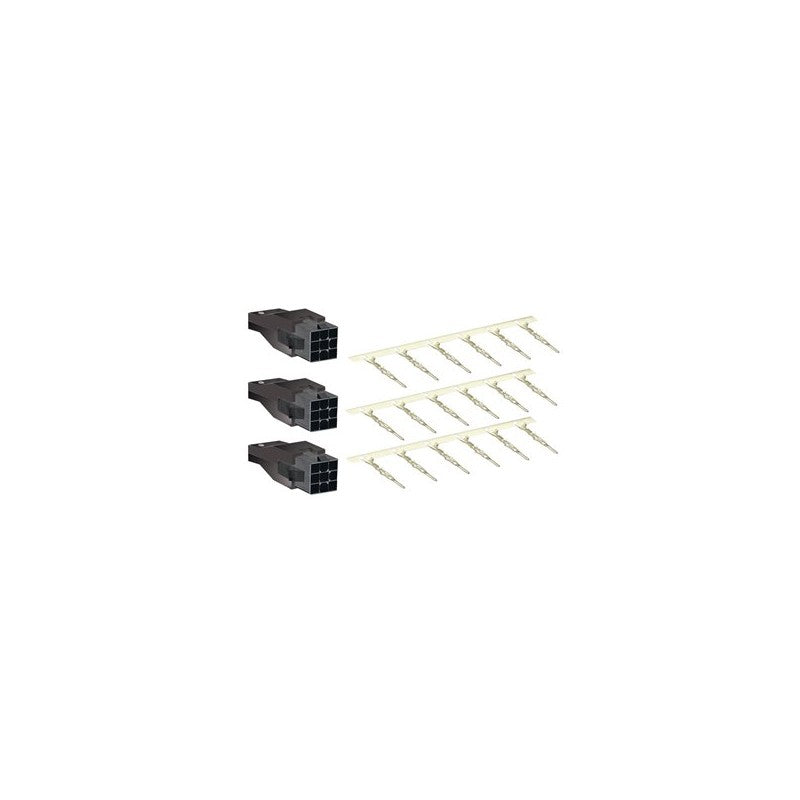

The Schneider Electric VW3M8D1A is an encoder connector kit designed for connecting encoders to specific Lexium BCH servo drives. This kit facilitates lead connections for BCH2.B, BCH2.D, and BCH2.F servo drives with motor frame sizes of 40mm, 60mm, and 80mm. It utilizes a CN2 plug for secure and reliable signal transmission.

Technical details

• Product Type: Encoder Connector Kit
• Manufacturer Series: Lexium BCH2
• Compatible Servo Drive Series: BCH2.B, BCH2.D, BCH2.F
• Compatible Motor Frame Sizes: 40mm, 60mm, 80mm
• Connection Type: Leads Connection
• Connector Designation: CN2 Plug
• Function: Facilitates encoder signal transmission to servo drive

Applications & compatibility

This encoder connector kit is essential for systems utilizing Schneider Electric's Lexium BCH servo drives, commonly found in automated machinery for precise motion control. Applications include packaging lines, material handling equipment, CNC machines, and robotics where accurate feedback from rotary encoders is critical for closed-loop operation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3M8D1A or contact our technical team for cross-reference assistance with compatible Lexium BCH components.
