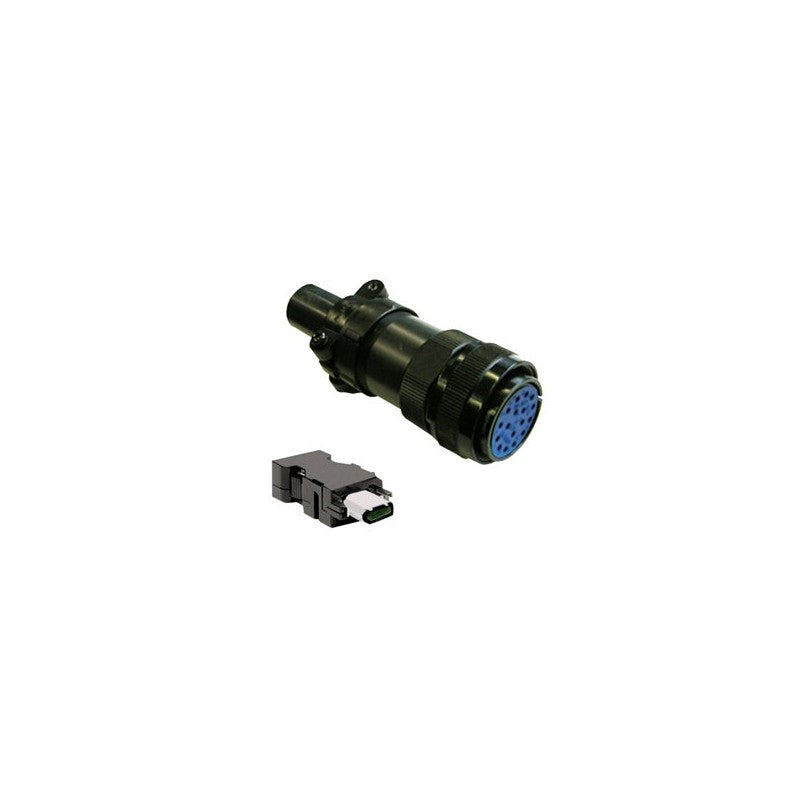

The Schneider Electric VW3M8D2A is an encoder connector kit designed for use with BCH2.H/.M/.R series servo drives. This specific kit features a MIL-style connection, ensuring robust and reliable signal transmission for encoder feedback in demanding industrial environments. It is engineered for compatibility with BCH2 servo motors in 100mm, 130mm, and 180mm frame sizes, providing a secure interface for motor feedback signals.

Technical details

• Series Compatibility: Schneider Electric BCH2.H/.M/.R servo drives
• Motor Frame Size Compatibility: 100mm, 130mm, 180mm
• Connection Type: MIL-style connector
• Connector Designation: CN2 plug
• Function: Encoder feedback signal transmission
• Construction: Durable for industrial applications
• Purpose: Facilitates secure and reliable connection between servo motor encoder and drive

Applications & compatibility

This encoder connector kit is essential for applications utilizing Schneider Electric's BCH2 servo drives and compatible motors. It is commonly found in automated systems requiring precise motor control and feedback, such as high-speed packaging machinery, robotic arms, CNC machine tools, and automated assembly lines where reliable encoder data is critical for performance and accuracy.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3M8D2A or contact our technical team for cross-reference assistance with compatible Schneider Electric servo components.
