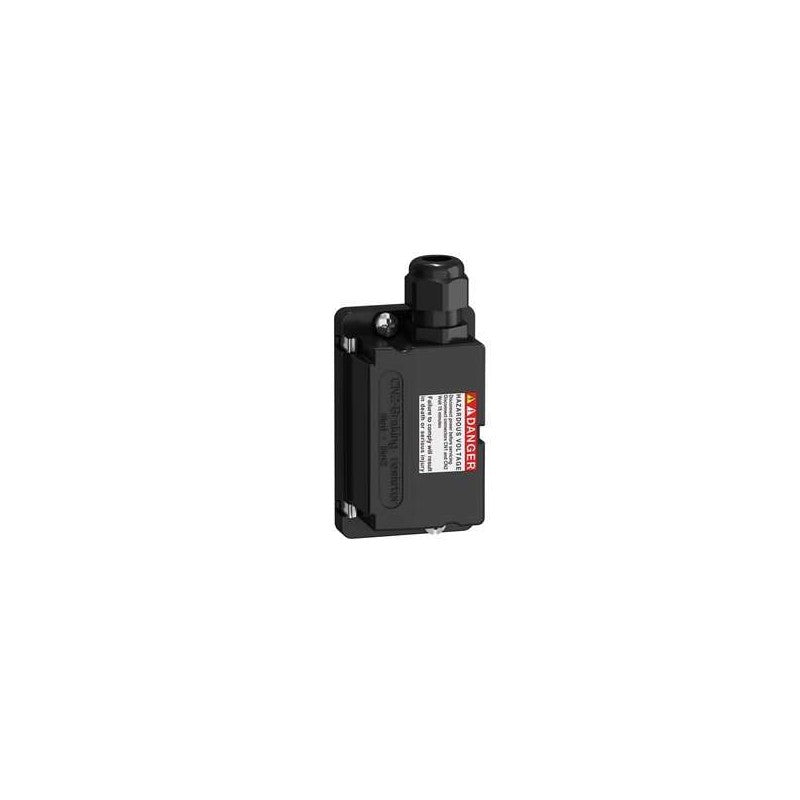

The Schneider Electric VW3M9010 is a connection module specifically designed for external braking resistors. This module is part of the Altivar variable speed drive accessory range, facilitating the dissipation of regenerative energy generated during deceleration in motor applications. It is engineered to integrate seamlessly with compatible Altivar drives, ensuring efficient and safe operation by managing excess energy.

Technical details

• Product Type: Connection Module for External Braking Resistor
• Manufacturer Series: Altivar Accessories
• Functionality: Connects and manages external braking resistors for variable speed drives.
• Energy Dissipation: Designed to handle regenerative energy generated during motor deceleration.
• Compatibility: Intended for use with specific Schneider Electric Altivar variable speed drives. Verify compatibility with your drive model via the manufacturer's datasheet.
• Mounting: Typically designed for DIN rail or direct mounting within drive enclosures. Specific mounting details should be confirmed with the datasheet.
• Electrical Interface: Provides terminals for connecting the braking resistor and the drive's braking chopper circuit.
• Protection: Contributes to the protection of the drive's DC bus by preventing overvoltage conditions caused by regenerative braking.

Applications & compatibility

This connection module is essential for applications where Altivar variable speed drives experience frequent or significant deceleration, leading to regenerative energy feedback. Common use cases include packaging machinery, material handling systems, and machine tools where rapid stopping or controlled descent is required. Ensure compatibility with your specific Altivar drive model by consulting the Schneider Electric documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3M9010 or contact our technical team for cross-reference assistance with compatible Altivar braking components.
