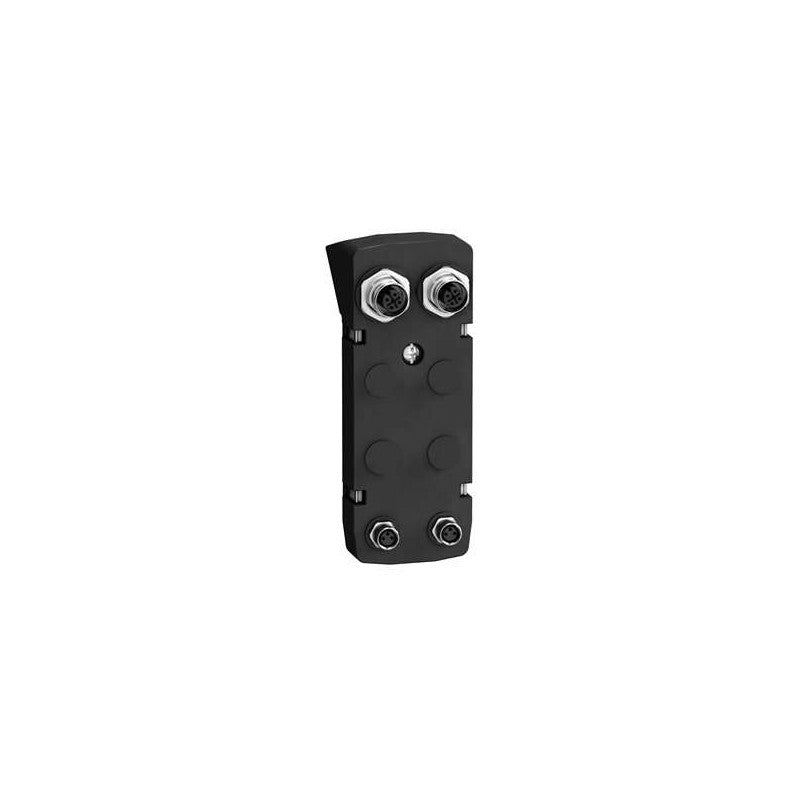

The Schneider Electric VW3M9209 serves as a connection module for industrial automation systems, specifically designed for EtherCAT communication. This module integrates two digital inputs configured for sink operation, enabling straightforward data acquisition within a networked environment. It is a key component for expanding the I/O capabilities of compatible Schneider Electric drives and controllers.

Technical details

• Communication Protocol: EtherCAT
• Digital Inputs: 2 DI (Sink configuration)
• Module Type: Connection Module
• Manufacturer Series: Likely part of a larger Schneider Electric automation ecosystem, requiring verification against manufacturer datasheets for specific drive or controller compatibility.
• Input Voltage Rating: Requires verification against manufacturer datasheet.
• Input Current Rating: Requires verification against manufacturer datasheet.
• Form Factor: Designed for integration with specific Schneider Electric drive or controller chassis.
• Functionality: Facilitates the connection of external digital sensors or switches to the EtherCAT network via sink-type inputs.

Applications & compatibility

This connection module is commonly employed in applications requiring precise digital signal acquisition over an EtherCAT network. It is suitable for integration into packaging machinery, material handling systems, and automated assembly lines where real-time status monitoring of sensors and switches is critical. Compatibility is typically with specific Schneider Electric Lexium or Altivar drive families that support EtherCAT expansion modules.
