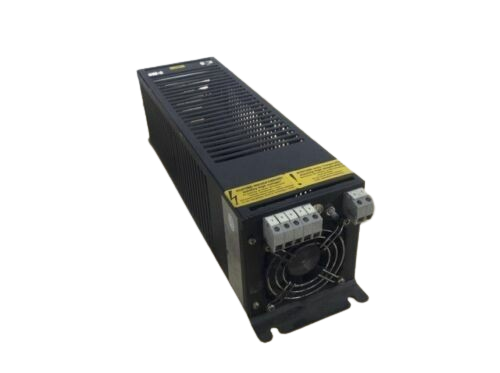

The Schneider Electric VZ3PC1200200 is a power cell designed for use within the ATV1200 series of variable frequency drives. This component serves as a critical element for power conversion and distribution within the drive system. Specifically, the VZ3PC1200200 is rated for 200 Amperes, indicating its capacity to handle significant current loads required for motor control applications.

Technical details

• Series: ATV1200
• Component Type: Power Cell
• Current Rating: 200 Amperes
• Voltage Class: Verify with manufacturer datasheet for specific voltage range (e.g., 208V, 230V, 460V, 575V).
• Functionality: Provides the core power rectification and inversion stages for the VFD.
• Configuration: Supplied without braking unit (wo. By).
• Dimensions: Refer to Schneider Electric ATV1200 series documentation for exact physical dimensions.
• Protocol Compatibility: Dependent on the main ATV1200 drive unit; typically supports Modbus RTU and other common industrial fieldbuses.

Applications & compatibility

This power cell is integral to Schneider Electric's ATV1200 variable frequency drive systems, commonly deployed in applications requiring precise motor speed control. It is suitable for use in demanding industrial environments such as material handling, pump and fan control, and general machinery automation where robust power management is essential.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VZ3PC1200200 or contact our technical team for cross-reference assistance with compatible ATV1200 drive components.
