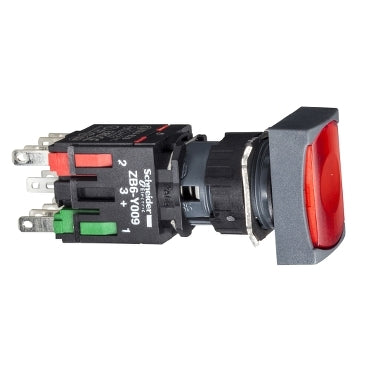

The Schneider Electric XB6 Series illuminated pushbutton offers a robust solution for control panel integration. This specific unit, the XB6DF4B2B, is a red, rectangular, flush-mounted pushbutton designed for latching operation. It features a Ø16mm mounting diameter and operates within a 12-24VDC voltage range, making it suitable for a variety of control circuits.

Technical Details

• Series: XB6
• Actuator Type: Pushbutton
• Operator Type: Latching
• Illumination: Complete illumination
• Lens Shape: Rectangular
• Lens Style: Flush
• Contact Configuration: 1 Normally Closed (1NC)
• Voltage Rating: 12-24VDC
• Mounting Diameter: Ø16mm

Applications & Compatibility

This Schneider Electric pushbutton is commonly employed in operator interfaces for industrial machinery, control panels, and automation systems. Its latching function is ideal for applications requiring a maintained state, such as emergency stop circuits, mode selection, or status indication on packaging lines, material handling equipment, and general machine control.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XB6DF4B2B or contact our technical team for cross-reference assistance with compatible XB6 components.
