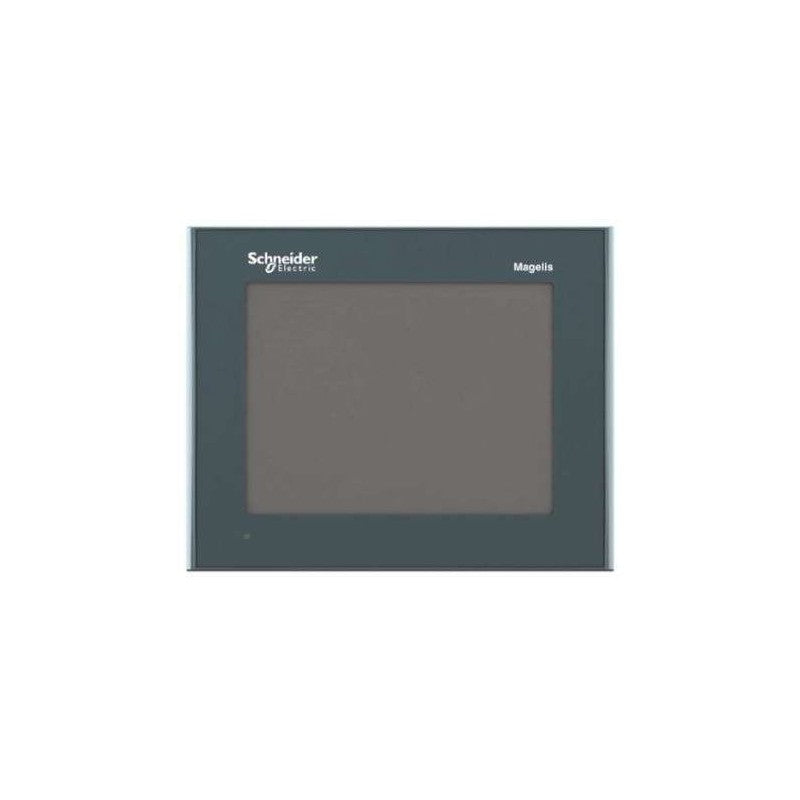

The Schneider Electric XBTGC2230U is a 5.7-inch color touchscreen operator interface terminal designed for industrial control and monitoring applications. This panel features a 16-input and 16-output configuration, specifically configured for sink-type digital I/O. It is commonly integrated into machine control panels for manufacturing equipment, providing operators with a visual interface for process management and diagnostics.

Technical details

• Display Size: 5.7 inches
• Display Type: Color Touchscreen
• Digital Inputs: 16 (Sink configuration)
• Digital Outputs: 16 (Sink configuration)
• Series: XBT-GC (Magelis series)
• Power Requirements: Verify voltage and current specifications against the manufacturer's datasheet.
• Communication Protocols: Verify supported communication protocols against the manufacturer's datasheet.
• Dimensions: Verify physical dimensions against the manufacturer's datasheet.

Applications & compatibility

This operator interface terminal is suitable for integration into a wide range of industrial automation systems, including packaging machinery, assembly lines, material handling equipment, and process control applications. Its robust design and clear display facilitate efficient operation and monitoring of various machine functions and production processes.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XBTGC2230U or contact our technical team for cross-reference assistance with compatible Magelis components.
