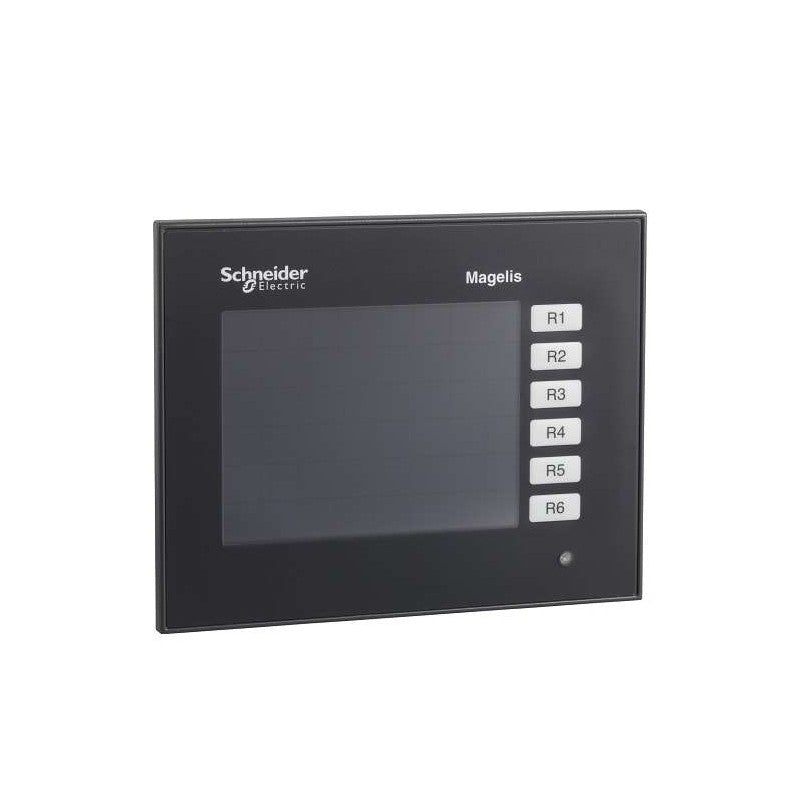

The Schneider Electric XBTGT1130 is an advanced touchscreen operator panel designed for human-machine interface (HMI) applications in industrial automation. This panel is part of the Magelis XBT-GT series, offering a 3.8-inch QVGA display with a resolution of 320 x 240 pixels. It operates on a 24 VDC power supply, making it suitable for integration into a wide range of control systems.

Technical details

• Display Size: 3.8 inches
• Display Resolution: 320 x 240 pixels (QVGA)
• Touchscreen Type: Resistive
• Operating Voltage: 24 VDC
• Series: Magelis XBT-GT
• Backlight Type: LED
• Memory: Internal flash memory for application storage
• Communication Ports: Typically includes serial ports (e.g., RS-232, RS-485) and potentially Ethernet, depending on specific configuration. Verify exact port types against manufacturer datasheet.

Applications & compatibility

This HMI panel is commonly deployed in machine control and process monitoring environments, including packaging machinery, material handling systems, and assembly lines. Its intuitive touchscreen interface facilitates operator interaction with PLCs and other automation devices, enhancing operational efficiency and providing clear visual feedback on system status.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XBTGT1130 or contact our technical team for cross-reference assistance with compatible Magelis components.
