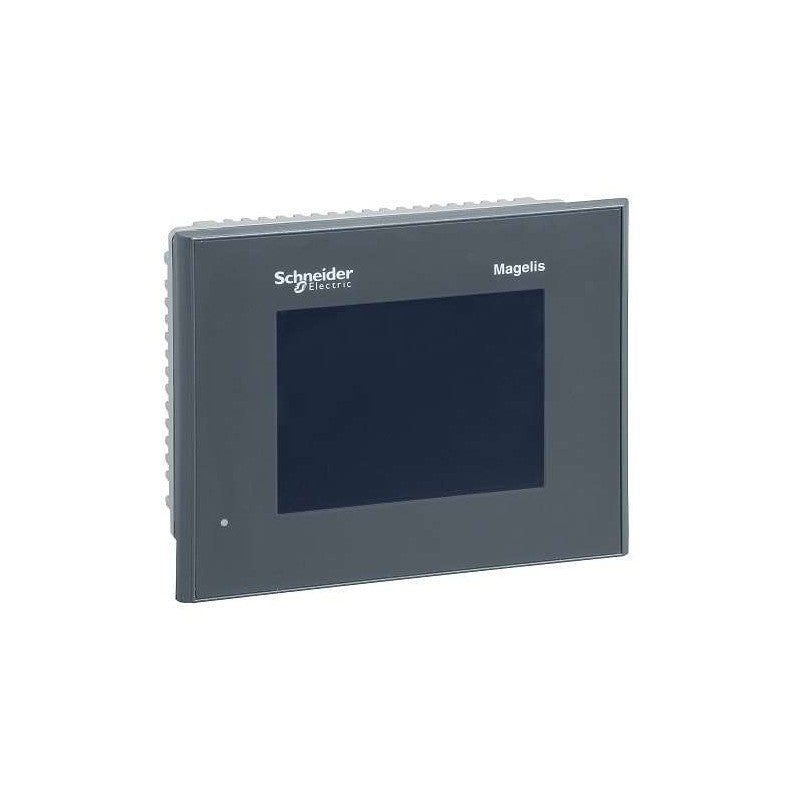

The Schneider Electric XBTGT1135 is an advanced touchscreen operator panel designed for human-machine interface (HMI) applications within industrial automation systems. This panel features a 3.8-inch QVGA display with a resolution of 320 x 240 pixels, providing clear visualization of operational data and control parameters. It operates on a 24 VDC power supply, making it suitable for integration into a wide range of control cabinets and machinery.

Technical details

• Display Size: 3.8 inches
• Display Resolution: 320 x 240 pixels (QVGA)
• Touchscreen Type: Resistive
• Operating Voltage: 24 VDC
• Backlight Type: LED
• Memory: 128 KB Flash, 128 KB SRAM
• Communication Ports: 1 x RS-232/422/485 serial port, 1 x USB port
• Enclosure Rating: IP20 (front face)
• Operating Temperature Range: 0°C to 50°C (32°F to 122°F)

Applications & compatibility

This HMI panel is commonly employed in manufacturing environments for machine control and monitoring. It is well-suited for integration into packaging machinery, material handling systems, assembly lines, and other automated equipment where operators require intuitive access to process status and control functions. The XBTGT1135 is compatible with Schneider Electric's Vijeo Designer software for configuration and programming.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XBTGT1135 or contact our technical team for cross-reference assistance with compatible Schneider Electric HMI components.
