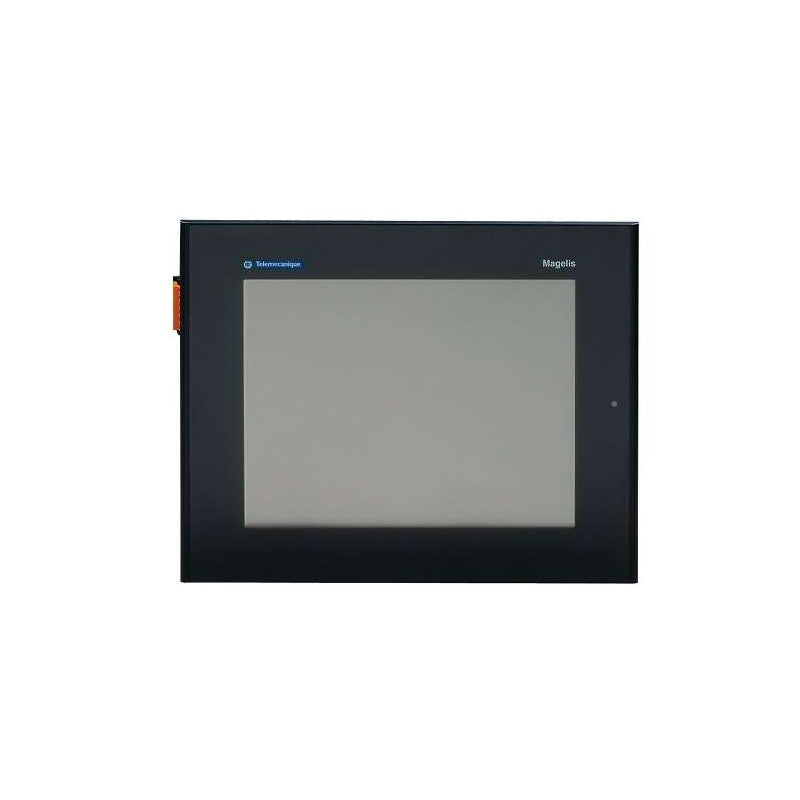

The Schneider Electric XBTGT4230 is an advanced touchscreen operator panel designed for HMI applications in industrial control systems. This panel features a 7.5-inch STN LCD display with a resolution of 640 x 480 pixels, providing clear visualization of operational data and control interfaces. It operates on a 24 V DC power supply, making it suitable for integration into a wide range of automation architectures.

Technical details

• Display Type: STN LCD
• Screen Size: 7.5 inches
• Resolution: 640 x 480 pixels (VGA)
• Backlight Type: CCFL (typical for this series, verify with datasheet)
• Touchscreen Technology: Resistive (typical for this series, verify with datasheet)
• Operating Voltage: 24 V DC
• Communication Ports: Multiple serial and Ethernet ports (verify specific configurations with datasheet)
• Memory: Internal memory for application storage (verify capacity with datasheet)

Applications & compatibility

This operator panel is commonly deployed in manufacturing environments for machine control and monitoring. It is well-suited for integration into systems found on packaging machinery, assembly lines, material handling equipment, and process control applications. The XBTGT4230 facilitates operator interaction with PLCs and other automation devices, enabling efficient supervision and adjustment of industrial processes.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XBTGT4230 or contact our technical team for cross-reference assistance with compatible Schneider Electric HMI components.
