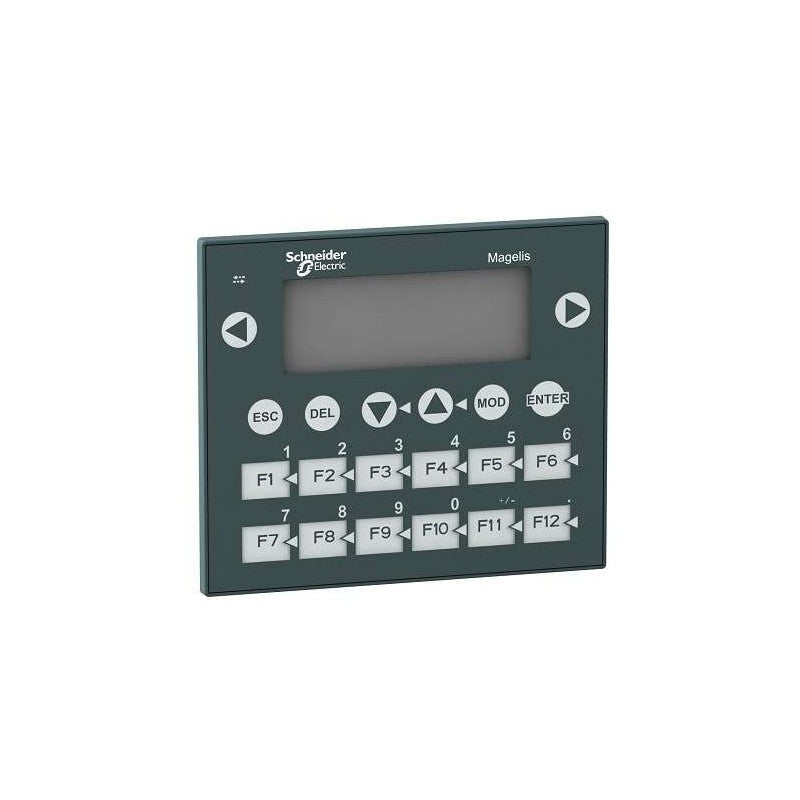

The Schneider Electric XBTR400 is a compact operator interface panel designed for industrial control applications. This unit features a monochrome matrix screen with a resolution of 122 x 32 pixels, providing clear alphanumeric and graphical display capabilities. Its integrated keypad allows for direct user input and navigation within the interface.

Technical details

• Display Type: Matrix Screen
• Display Resolution: 122 x 32 pixels
• Display Color: Green
• Keypad Interface: Integrated numeric and function keys
• Power Requirement: 5 V DC
• Panel Dimensions: 122 mm (width) x 32 mm (height)
• Series: XBTR (part of Schneider Electric's HMI offerings)
• Enclosure Type: Small panel form factor suitable for panel mounting

Applications & compatibility

This operator panel is commonly integrated into machine control systems for monitoring and operator interaction. It is suitable for applications such as standalone machine control, small automation cells, or as a supplementary interface on larger systems where basic operator input and status display are required. Its compact size makes it ideal for space-constrained control panels.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XBTR400 or contact our technical team for cross-reference assistance with compatible Schneider Electric HMI components.
