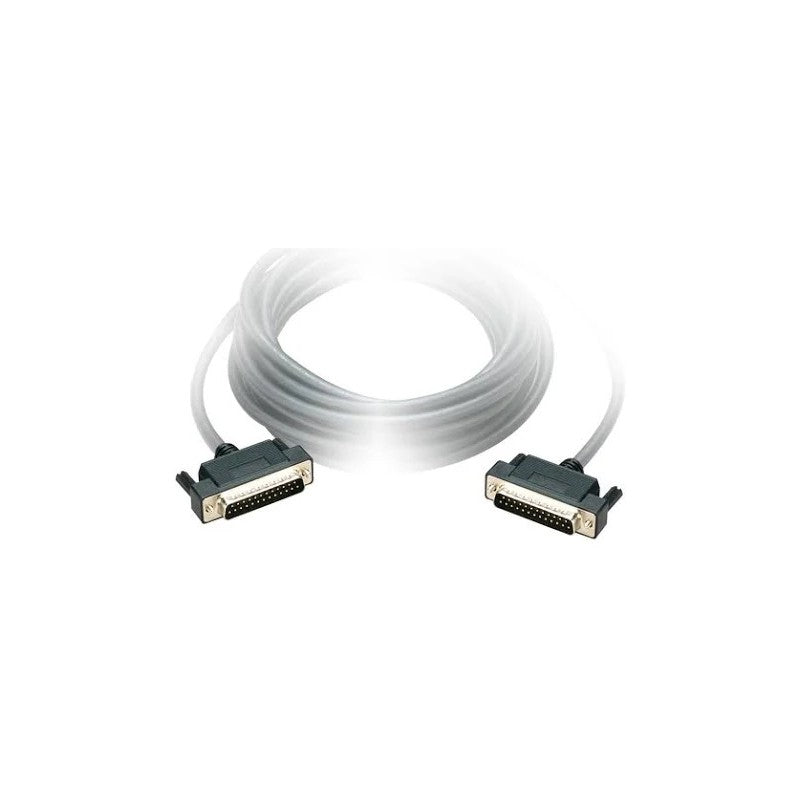

This Schneider Electric XBTZ9720 is a direct connection cable designed for HMI to PLC communication. It facilitates data transfer between compatible terminals and automation controllers within the Schneider Electric ecosystem. The cable features specific connector types and a defined length to ensure reliable signal integrity for industrial control applications.

Technical details

• Cable Type: Direct connection cable
• Length: 2.5 meters
• Connectors: 2 x Male SUB-D 25-pin connectors
• Manufacturer Series: XBT (likely for Magelis HMI panels)
• Protocol Support: Designed for serial communication protocols commonly used by Schneider Electric HMIs and PLCs (specific protocol to be verified against manufacturer datasheet)
• Shielding: Typically shielded to minimize electromagnetic interference in industrial environments (verify against manufacturer datasheet)
• Application: Facilitates direct serial communication between compatible Schneider Electric HMI panels and PLCs.

Applications & compatibility

The XBTZ9720 cable is commonly employed in manufacturing environments for connecting Schneider Electric HMI panels, such as those in the Magelis series, to various PLC platforms. This includes applications in assembly lines, process control systems, and machine automation where direct HMI-to-PLC data exchange is required.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XBTZ9720 or contact our technical team for cross-reference assistance with compatible Schneider Electric HMI and PLC components.
