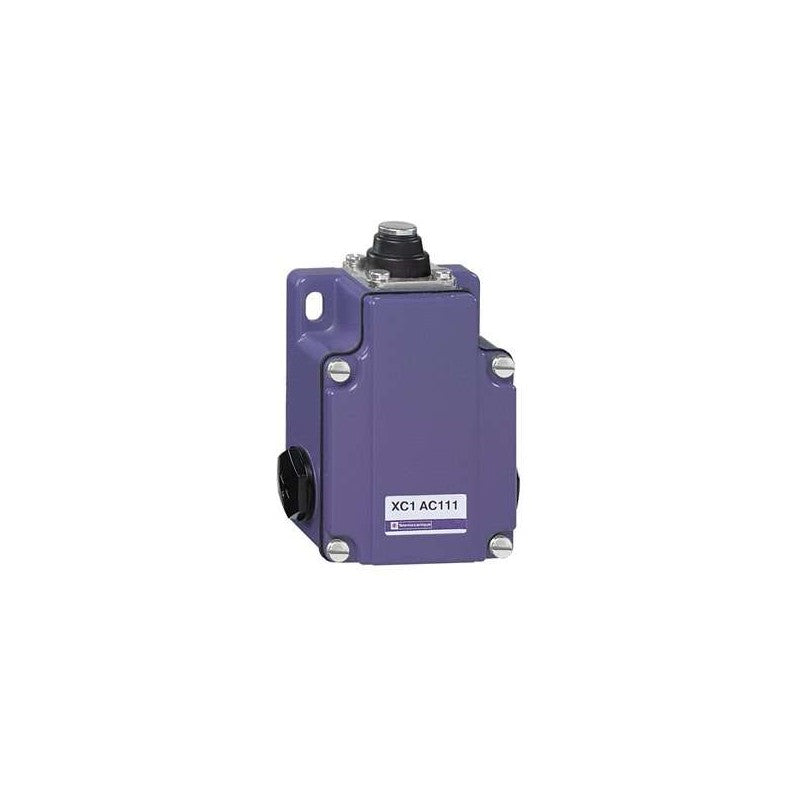

The Schneider Electric XC1AC111 is a limit switch from the XC1 series, designed for end-of-travel detection in automated machinery. This specific model features an end plunger actuator and a single pole, double throw (1C/O) contact configuration, suitable for signaling distinct operational states or controlling circuits based on mechanical limit engagement. It is commonly integrated into machine tool controls, material handling systems, and assembly lines where precise positional feedback is critical.

Technical details

• Series: XC1
• Actuator Type: End Plunger
• Contact Configuration: 1C/O (Single Pole, Double Throw)
• Switching Function: Momentary
• Enclosure Material: Typically robust thermoplastic for industrial environments (verify with datasheet for exact material).
• Mounting Type: Threaded body for panel or bracket mounting.
• Electrical Rating: Contact ratings for voltage and current vary; consult the manufacturer's datasheet for specific AC/DC voltage and amperage limits for the 1C/O configuration.
• Operating Temperature Range: Standard industrial operating temperatures; refer to the datasheet for precise specifications.

Applications & compatibility

This Schneider Electric limit switch is engineered for reliable operation in demanding industrial settings. It finds application in controlling the movement of automated equipment on packaging machinery, robotic cells, and conveyor systems. The 1C/O contact allows for flexible circuit design, enabling simultaneous signaling of two different conditions or control of two separate circuits upon activation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XC1AC111 or contact our technical team for cross-reference assistance with compatible Schneider Electric XC1 series components.
