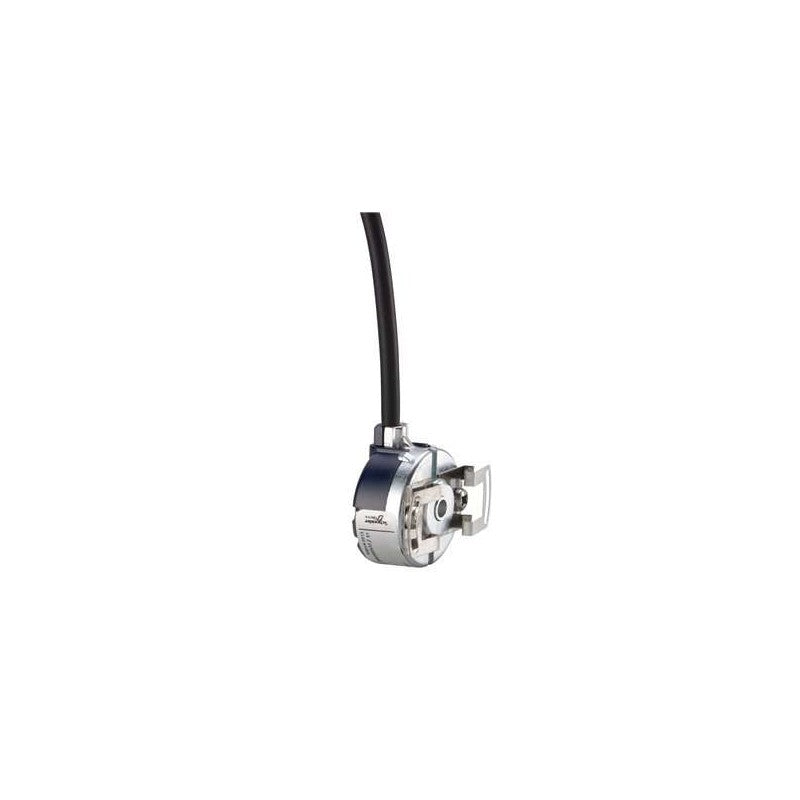

The Schneider Electric XCC1406TR03K is an incremental encoder designed for precise motion feedback in industrial automation systems. As part of the Schneider Electric encoder family, this unit features a through-shaft design and a push-pull output, making it suitable for integration into various machine control applications requiring accurate position and speed monitoring.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Through Shaft
• Shaft Diameter: 6 mm
• Resolution: 360 Pulses Per Revolution (PPR)
• Output Signal Type: Push-Pull (also known as Line Driver or RS422 compatible)
• Housing Material: Typically robust metal construction for industrial environments (verify with datasheet)
• Operating Temperature Range: Standard industrial ranges (verify with datasheet)
• Ingress Protection Rating: Suitable for industrial environments (verify with datasheet)

Applications & compatibility

This incremental encoder is commonly employed in applications demanding high-resolution position sensing, such as robotics, automated assembly lines, CNC machinery, and packaging equipment. Its push-pull output is compatible with a wide range of PLC inputs and dedicated encoder interfaces that support differential signaling, ensuring robust signal transmission over longer cable runs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1406TR03K or contact our technical team for cross-reference assistance with compatible encoder solutions.
