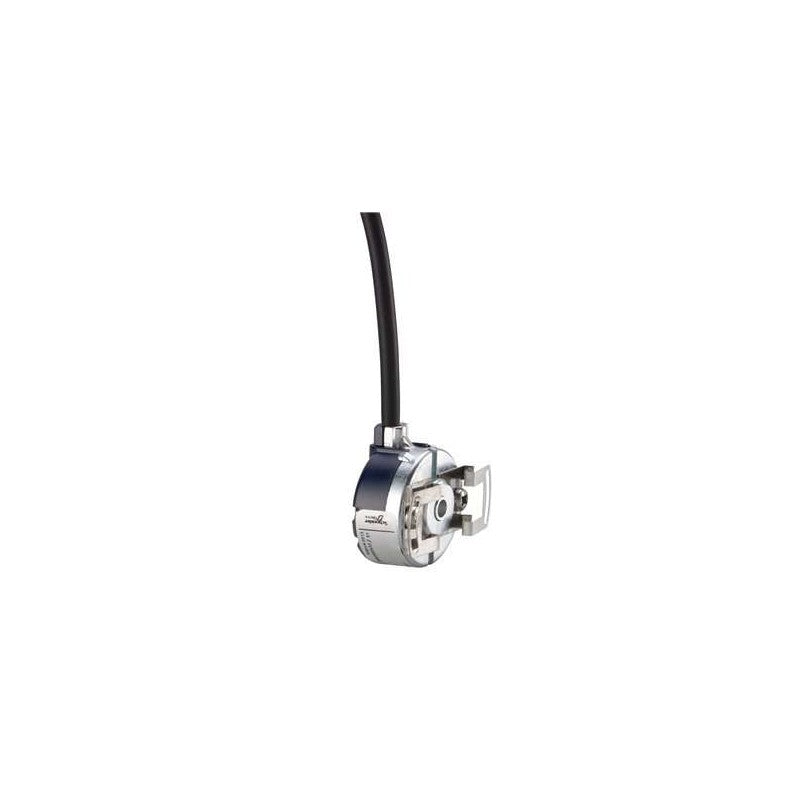

The Schneider Electric XCC1406TR03R is an incremental encoder designed for precise position feedback in automated systems. As part of the Schneider Electric encoder family, this unit features a through-shaft design with a 6 mm diameter, suitable for direct mounting on motor shafts or other rotating components. Its robust construction and reliable performance make it a key component in motion control applications.

Technical details

• Encoder Type: Incremental
• Shaft Type: Through Shaft
• Shaft Diameter: 6 mm
• Resolution: 360 Pulses Per Revolution (PPR)
• Power Supply: 5V DC
• Output Interface: RS422 Differential Line Driver
• Operating Temperature Range: Verify with manufacturer datasheet for specific environmental ratings.
• Enclosure Protection: Verify with manufacturer datasheet for specific IP ratings.

Applications & compatibility

This encoder is commonly employed in applications requiring accurate speed and position monitoring, such as servo motor feedback loops, robotic arm positioning, and automated assembly machines. Its RS422 output ensures noise immunity for reliable data transmission over longer distances, making it compatible with a wide range of industrial automation controllers and drives that support this protocol.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1406TR03R or contact our technical team for cross-reference assistance with compatible encoder solutions.
