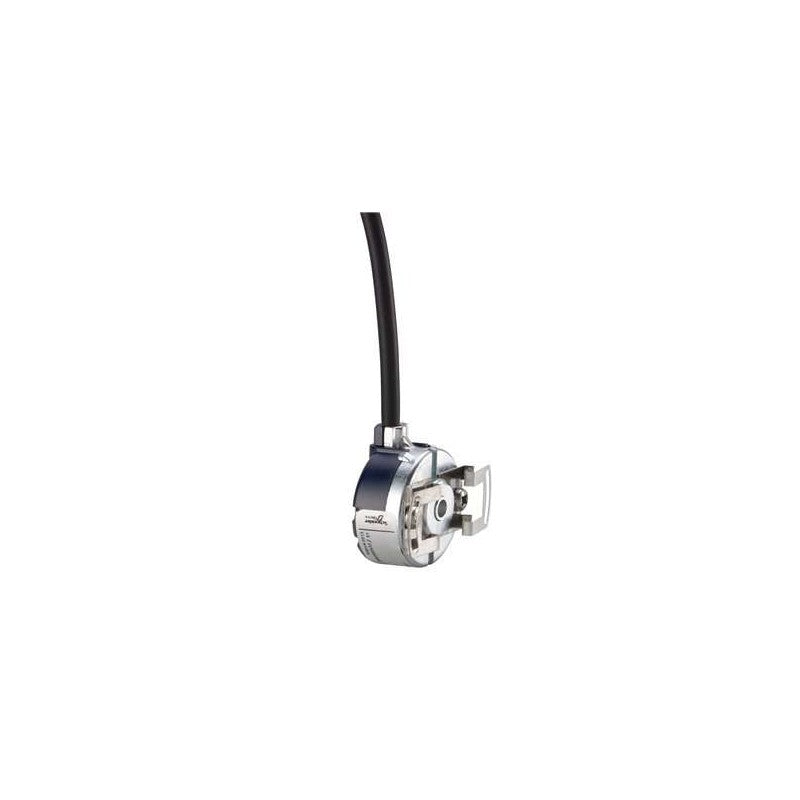

The Schneider Electric XCC1406TR05K is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the XCC series, this encoder features a through-shaft design and is engineered for applications requiring accurate rotational measurement. Its robust construction and reliable performance make it suitable for demanding operational environments.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Through Shaft
• Shaft Diameter: 6 mm
• Resolution: 500 Pulses Per Revolution (PPR)
• Output Signal Type: Push-Pull (also known as HTL or TTL depending on configuration, buyer should verify datasheet for specific output voltage compatibility)
• Housing Style: Compact cylindrical form factor
• Connection Type: Terminal block or connector (specific type to be verified via datasheet)
• Operating Temperature Range: Standard industrial range (specific range to be verified via datasheet)

Applications & compatibility

This encoder is commonly employed in applications such as motor feedback systems, robotics, automated assembly lines, and material handling equipment. It provides essential positional data for closed-loop control systems found in CNC machinery, packaging equipment, and printing presses. Compatibility with various drive controllers and PLCs is typical for this type of encoder, though specific interface requirements should be confirmed.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1406TR05K or contact our technical team for cross-reference assistance with compatible XCC series components.
