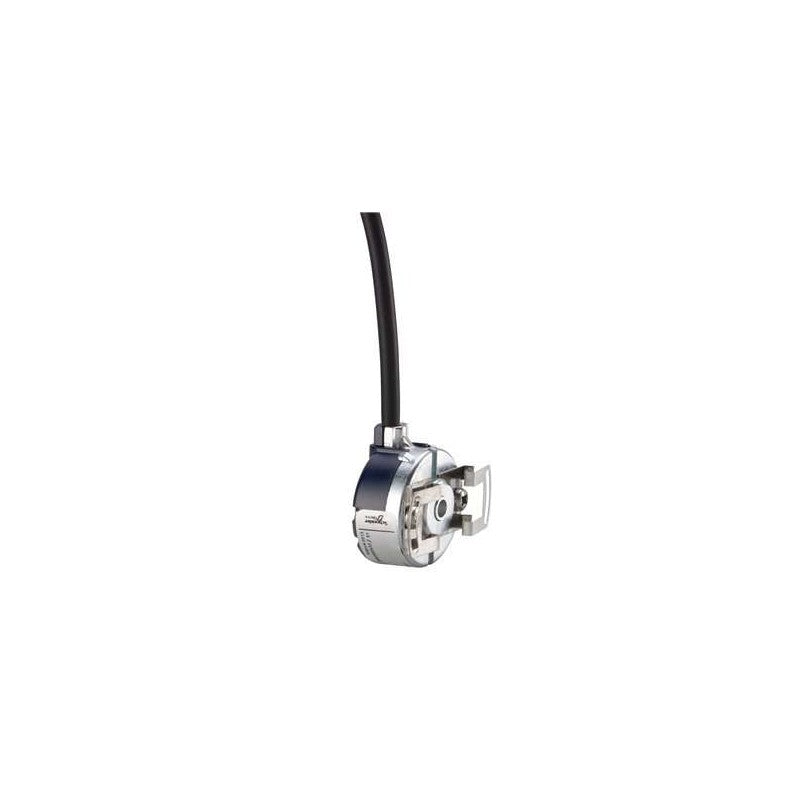

The Schneider Electric XCC1406TR05R is an incremental encoder designed for precise position feedback in automated systems. As part of the Schneider Electric encoder family, this unit features a through-shaft design and is engineered for integration into machinery requiring accurate rotational measurement. Its specifications are derived from Schneider Electric's established encoder product lines, offering reliable performance for demanding industrial environments.

Technical details

• Series: XCC Series
• Shaft Type: Through Shaft
• Shaft Diameter: 6 mm
• Resolution: 500 Pulses Per Revolution (PPR)
• Voltage Supply: 5V DC
• Output Protocol: RS422 Differential Line Driver
• Encoder Type: Incremental
• Housing: Standard industrial housing suitable for various mounting configurations.

Applications & compatibility

This incremental encoder is commonly employed in applications demanding high accuracy and robust performance, such as servo motor feedback loops, robotics, CNC machining centers, and automated assembly lines. Its RS422 output ensures noise immunity for reliable data transmission over longer distances, making it suitable for integration with a wide range of industrial controllers and drives that support this protocol.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1406TR05R or contact our technical team for cross-reference assistance with compatible encoder solutions.
