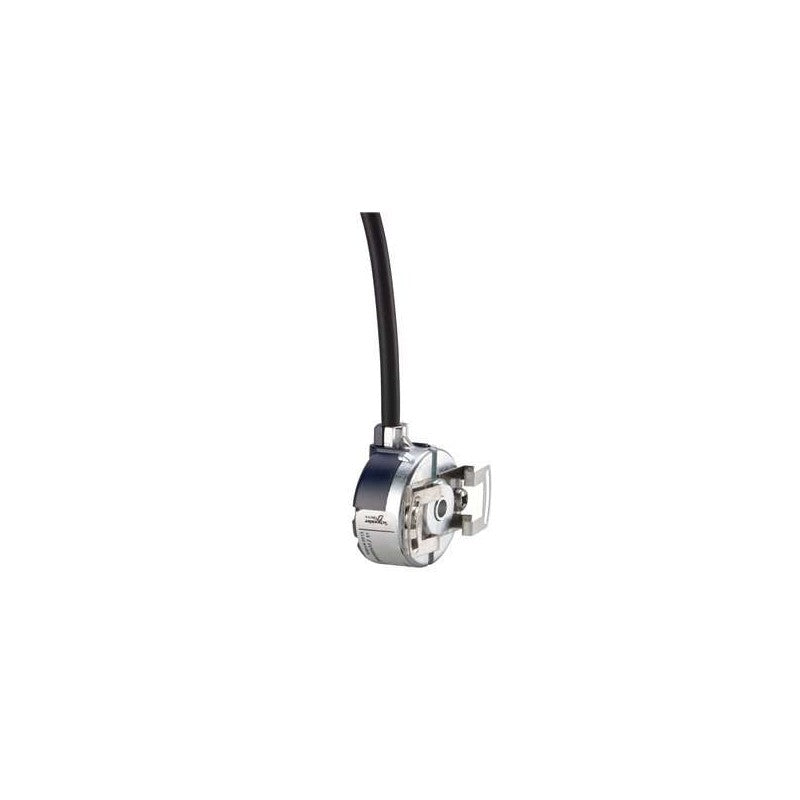

The Schneider Electric XCC1406TR10K is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the XCC series, this encoder features a through-shaft design and a push-pull output, making it suitable for integration into various machine control applications requiring accurate rotational measurement.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Through Shaft
• Shaft Diameter: 6 mm
• Resolution: 1000 Pulses Per Revolution (PPR)
• Output Signal Type: Push-Pull (also known as Line Driver or RS422 compatible)
• Housing Material: Typically robust metal construction for industrial environments (verify with datasheet)
• Operating Temperature Range: Standard industrial range (verify with datasheet)
• Ingress Protection Rating: Typically IP65 or higher for dust and water resistance (verify with datasheet)

Applications & compatibility

This encoder is commonly employed in applications demanding high-resolution position sensing, such as servo motor feedback loops, robotic arm positioning, and automated assembly equipment. Its push-pull output is compatible with a wide range of industrial controllers and drives that accept differential line driver signals, ensuring broad system integration capabilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1406TR10K or contact our technical team for cross-reference assistance with compatible encoder solutions.
