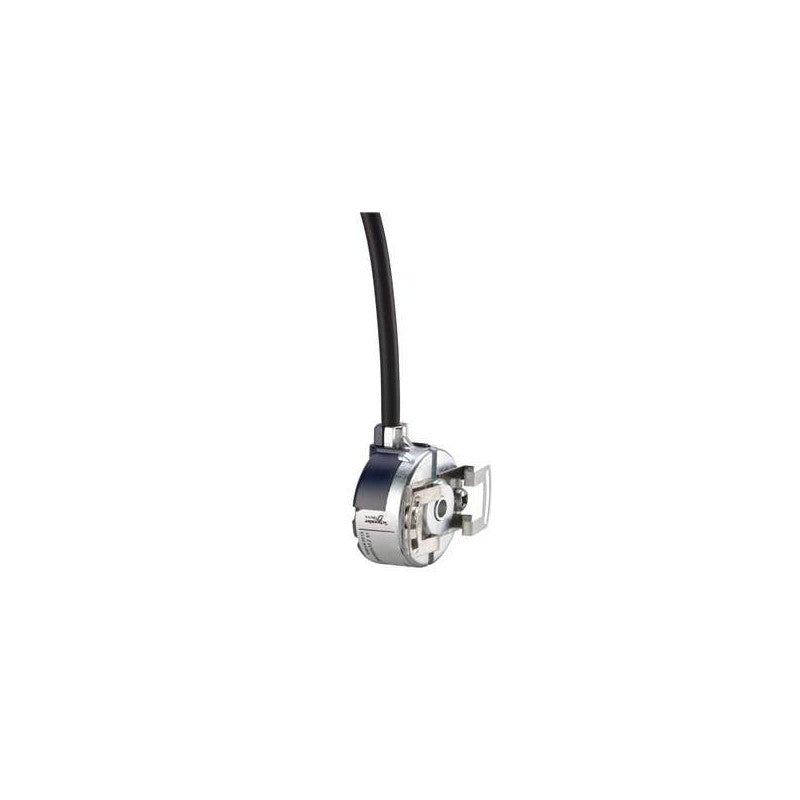

The Schneider Electric XCC1406TR11R is an incremental encoder designed for precise position feedback in industrial automation systems. This encoder is part of the XCC series, featuring a 40mm housing and a 6mm through shaft, making it suitable for integration into various machine designs. It provides 1024 pulses per revolution, enabling detailed motion control and monitoring.

Technical details

• Series: XCC
• Encoder Type: Incremental
• Shaft Type: Through Shaft
• Shaft Diameter: 6 mm
• Resolution: 1024 Pulses Per Revolution (PPR)
• Operating Voltage: 5V DC
• Output Interface: RS422
• Housing Diameter: 40 mm

Applications & compatibility

This encoder is commonly utilized in applications requiring accurate rotational measurement and control, such as on servo motors for CNC machinery, robotic arms, and automated assembly lines. Its RS422 output ensures robust signal transmission in electrically noisy industrial environments, making it compatible with a wide range of PLCs and motion controllers that support this protocol.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1406TR11R or contact our technical team for cross-reference assistance with compatible XCC series components.
