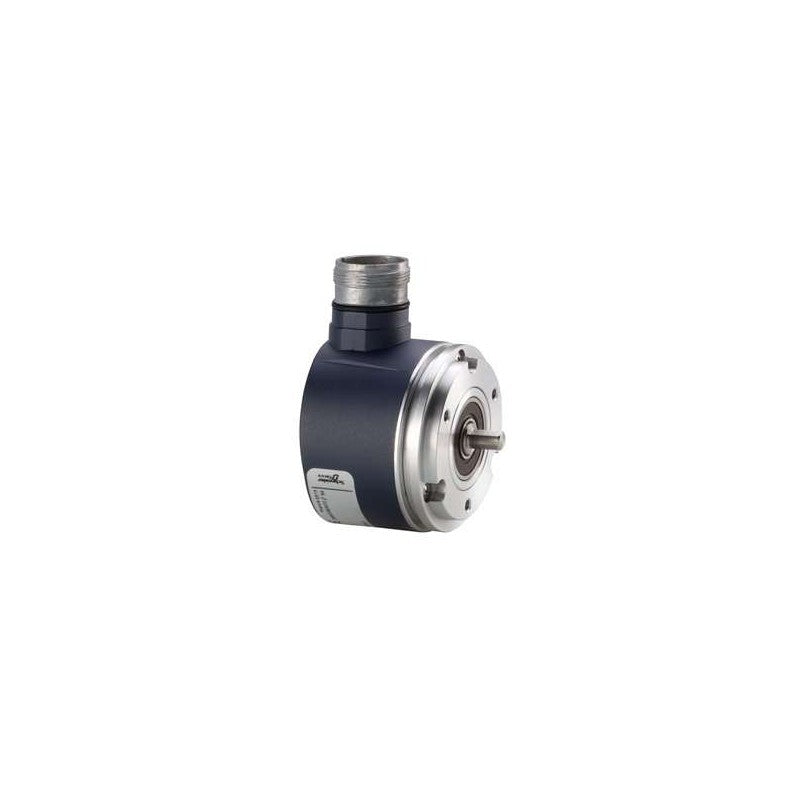

The Schneider Electric XCC1506PS05Y is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the 58 series, this encoder features a solid shaft measuring 6 mm in diameter, making it suitable for direct mounting on motor shafts or other rotating components. It provides 500 pulses per revolution, enabling detailed motion control and accurate data acquisition for a variety of machine applications.

Technical details

• Series: 58
• Shaft Type: Solid Shaft
• Shaft Diameter: 6 mm
• Resolution: 500 Pulses Per Revolution (PPR)
• Output Type: Push-Pull (also known as HTL or TTL depending on configuration, buyer should verify datasheet for specific voltage compatibility)
• Connection Type: (Refer to manufacturer datasheet for specific connector type and pinout)
• Operating Temperature Range: (Refer to manufacturer datasheet for specific environmental ratings)
• Ingress Protection Rating: (Refer to manufacturer datasheet for specific IP rating)

Applications & compatibility

This encoder is commonly employed in applications requiring accurate rotational measurement and control, such as on servo motors for CNC machinery, robotic arms, and automated assembly lines. Its robust construction and high resolution make it ideal for demanding environments found in packaging equipment, material handling systems, and textile machinery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1506PS05Y or contact our technical team for cross-reference assistance with compatible 58 series encoder components.
