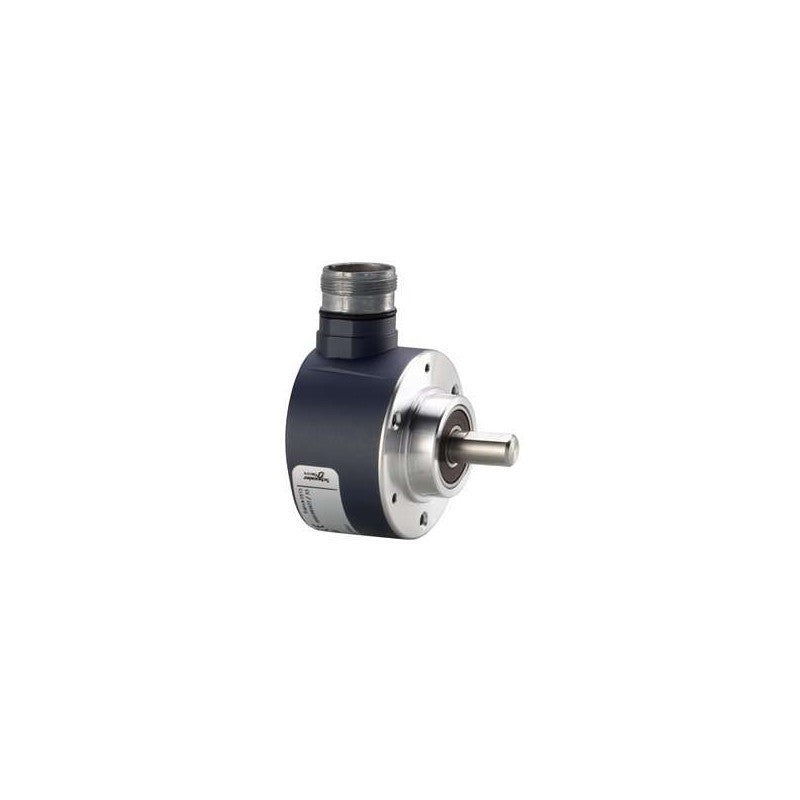

The Schneider Electric XCC1510PS01X is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the Schneider Electric encoder family, this unit features a solid shaft and operates on a 5V power supply with RS422 communication protocol, making it suitable for integration into various motion control applications.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Solid Shaft
• Shaft Diameter: 10 mm
• Resolution: 100 Pulses Per Revolution (PPR)
• Operating Voltage: 5V DC
• Output Protocol: RS422
• Series Designation: XCC (Likely part of a specific Schneider Electric encoder series, further details may be found in manufacturer datasheets)
• Housing: Standard industrial housing suitable for mounting in various orientations.

Applications & compatibility

This encoder is commonly employed in applications requiring accurate rotational measurement and feedback, such as on motor shafts for variable speed drives, robotics, and automated machinery. Its RS422 output ensures robust signal transmission over longer distances, compatible with many industrial controllers and PLCs that support this standard.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1510PS01X or contact our technical team for cross-reference assistance with compatible encoder components.
