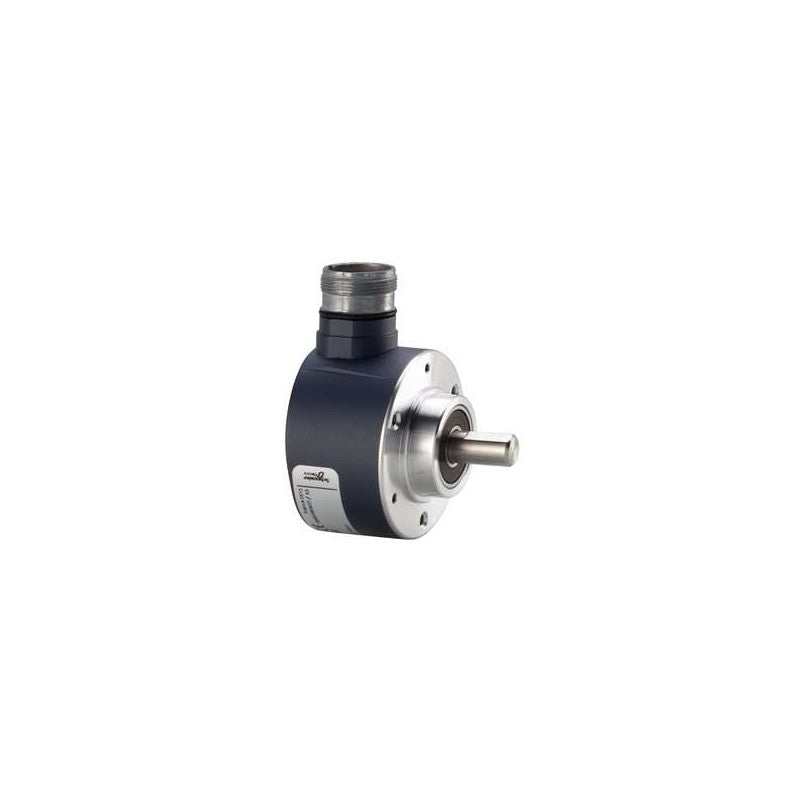

The Schneider Electric XCC1510PS03Y is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the Schneider Electric encoder family, this unit features a solid shaft and push-pull output, making it suitable for integration into various control architectures.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Solid Shaft
• Shaft Diameter: 10 mm
• Resolution: 360 Pulses Per Revolution (PPR)
• Output Signal: Push-Pull (also known as Line Driver or Differential Output)
• Series: XCC Series (as indicated by the part number prefix)
• Mounting: Designed for solid shaft mounting applications.
• Signal Compatibility: Push-pull outputs are compatible with a wide range of PLC inputs and dedicated encoder interfaces that accept differential signals.

Applications & compatibility

This incremental encoder is commonly employed in applications requiring accurate rotational speed and position monitoring, such as motor feedback systems on packaging machinery, CNC machine tools, and automated material handling equipment. Its push-pull output ensures robust signal transmission over longer distances and in electrically noisy environments.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCC1510PS03Y or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder components.
