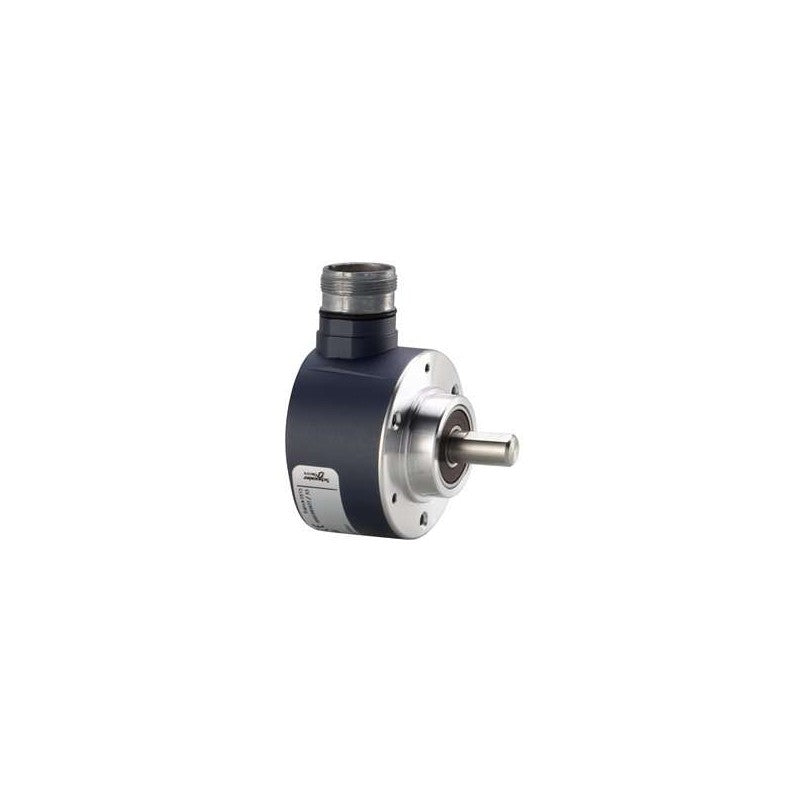

The Schneider Electric XCC1510PS05X is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the Schneider Electric encoder family, this unit features a solid shaft and is engineered for applications requiring accurate motion control and data acquisition. Its robust construction and specific electrical interface make it suitable for demanding operational environments.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Solid Shaft
• Shaft Diameter: 10 mm
• Resolution: 500 Pulses Per Revolution (PPR)
• Voltage Supply: 5V DC
• Output Interface: RS422 Differential Line Driver
• Series Designation: XCC (as indicated by part number prefix)
• Housing Style: 58 mm form factor (as indicated by part number)

Applications & compatibility

This encoder is commonly integrated into machine tools, robotics, automated assembly lines, and material handling equipment where precise rotational or linear position feedback is critical. Its RS422 output ensures robust signal transmission over longer distances, making it compatible with a wide range of industrial controllers and PLCs that support this interface.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1510PS05X or contact our technical team for cross-reference assistance with compatible encoder solutions.
