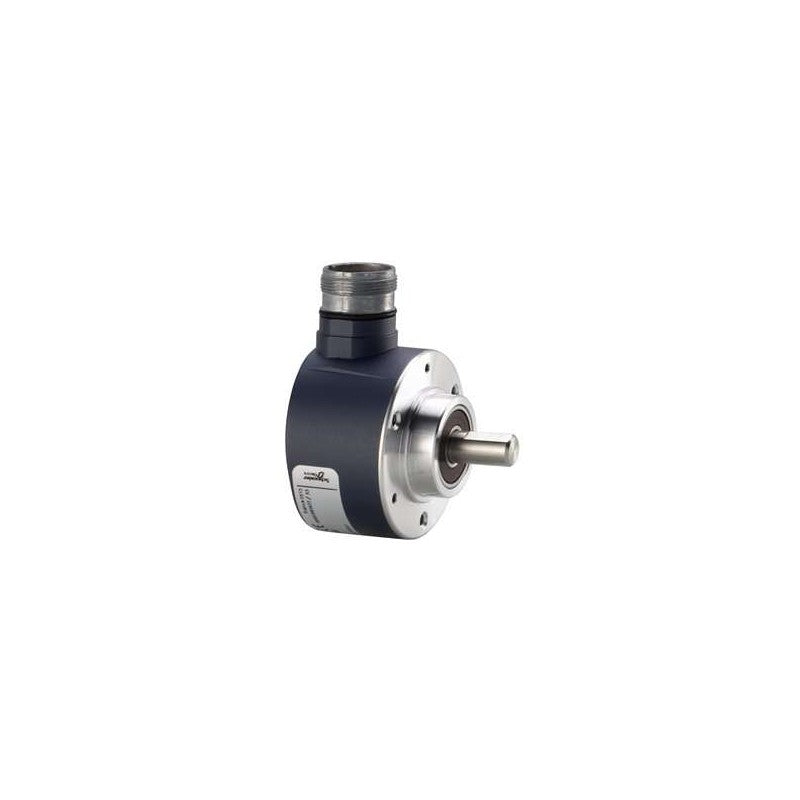

The Schneider Electric XCC1510PS10Y is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the XCC series, this encoder features a solid shaft with a 10 mm diameter, suitable for direct mounting in various machine configurations. It provides 1000 pulses per revolution, enabling detailed motion control and accurate data acquisition for automated processes.

Technical details

• Series: XCC
• Encoder Type: Incremental
• Shaft Type: Solid Shaft
• Shaft Diameter: 10 mm
• Resolution: 1000 Pulses Per Revolution (PPR)
• Output Type: Push-Pull (also known as HTL or TTL depending on configuration, buyer should verify datasheet for specific output signal compatibility)
• Housing Diameter: 58 mm

Applications & compatibility

This encoder is commonly employed in applications requiring high-resolution position sensing, such as servo motor feedback loops, robotic arm positioning, and automated assembly equipment. Its robust construction and 10 mm solid shaft make it compatible with a wide range of motor shafts and mounting brackets found in packaging machinery, CNC machines, and material handling systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1510PS10Y or contact our technical team for cross-reference assistance with compatible XCC series components.
