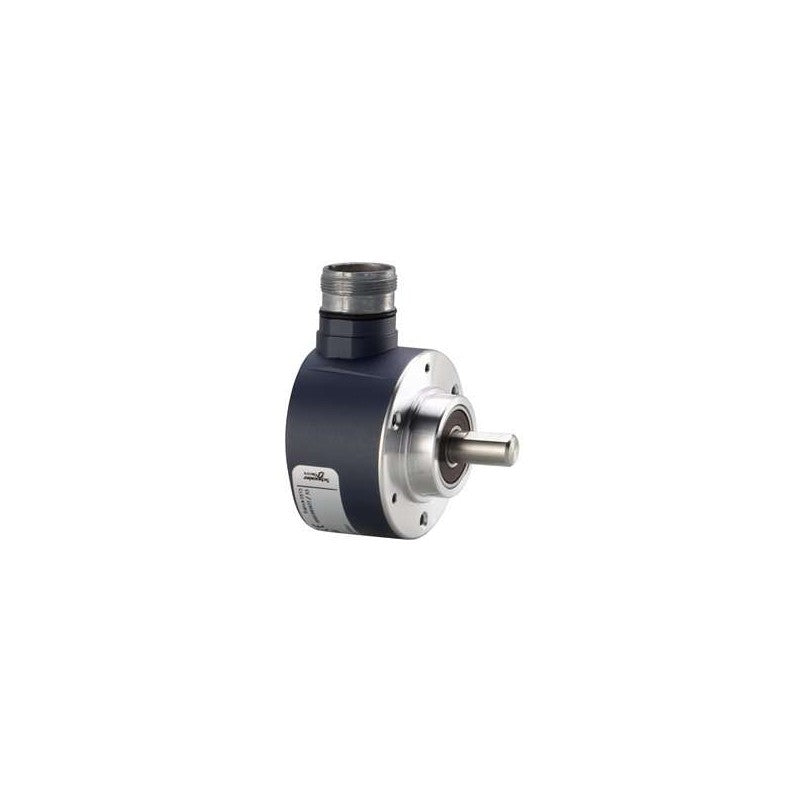

The Schneider Electric XCC1510PS11X is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the Schneider Electric encoder family, this unit features a solid shaft and operates with a 5V power supply, utilizing the RS422 communication protocol for reliable data transmission. Its robust construction and specified resolution make it suitable for demanding motion control applications.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Solid Shaft
• Shaft Diameter: 10 mm
• Resolution: 1024 Pulses Per Revolution (PPR)
• Operating Voltage: 5V DC
• Communication Protocol: RS422
• Series Designation: XCC (as indicated by part number prefix)
• Output Signal: Differential Line Driver (standard for RS422)

Applications & compatibility

This encoder is commonly integrated into servo motor feedback loops for CNC machinery, robotic arms, and automated assembly lines. Its 1024 PPR resolution and RS422 interface ensure accurate position and velocity control in applications requiring high precision, such as packaging equipment, material handling systems, and printing presses.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1510PS11X or contact our technical team for cross-reference assistance with compatible encoder solutions.
