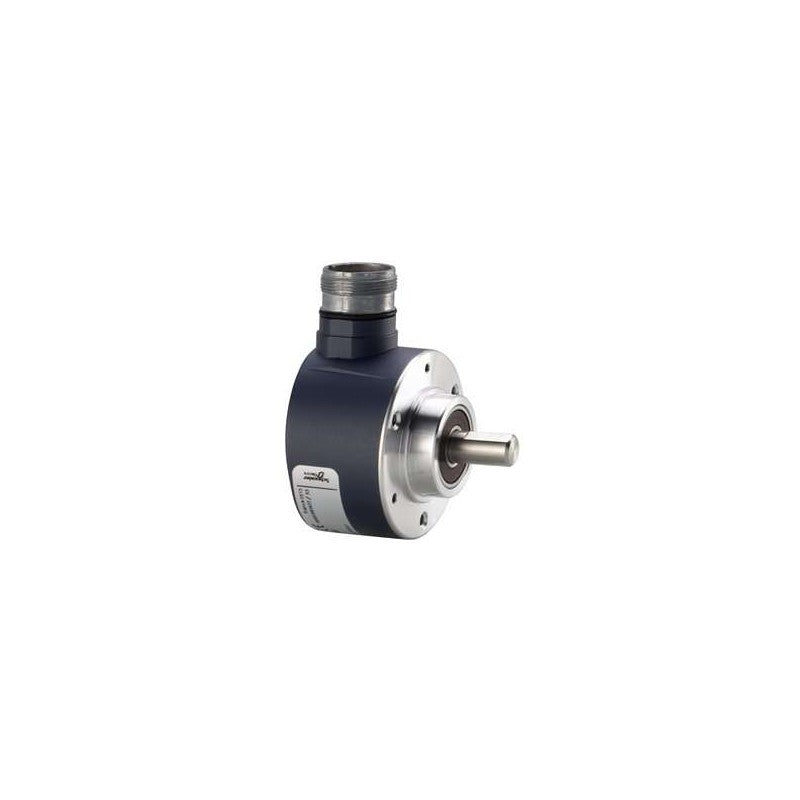

The Schneider Electric XCC1510PS25X is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the XCC series, this encoder features a solid shaft with a 10 mm diameter, suitable for direct mounting on motor shafts or other rotating components. It provides 2500 pulses per revolution, enabling high-resolution position tracking for demanding applications.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Solid Shaft
• Shaft Diameter: 10 mm
• Resolution: 2500 Pulses Per Revolution (PPR)
• Operating Voltage: 5V DC
• Output Protocol: RS422
• Output Signal: Differential Line Driver
• Housing Material: Metal Alloy (typical for industrial encoders of this type)

Applications & compatibility

This encoder is commonly employed in applications requiring accurate speed and position monitoring, such as servo motor feedback, robotic arm control, and automated assembly lines. Its RS422 output makes it compatible with a wide range of industrial controllers, PLCs, and drives that support differential signaling for noise immunity over longer cable runs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCC1510PS25X or contact our technical team for cross-reference assistance with compatible Schneider Electric automation components.
