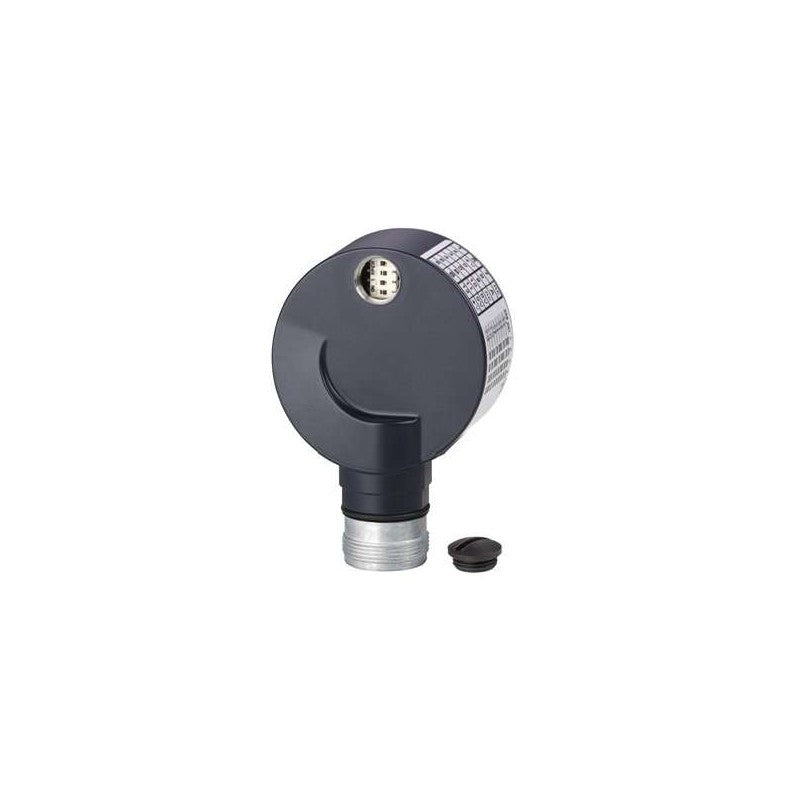

Part of the Schneider Electric XCC series, this incremental encoder is designed for precise position feedback in automated machinery. It features a solid shaft suitable for direct mounting and offers a configurable resolution, allowing for adaptation to various control requirements. This encoder is commonly integrated into motion control systems where accurate rotary position data is critical for operational efficiency.

Technical details

• Series: XCC
• Shaft Type: Solid Shaft
• Shaft Diameter: 10 mm
• Resolution Options: 256 to 4096 points per revolution
• Output Type: Push-Pull (also known as HTL or TTL depending on configuration, buyer to verify against datasheet)
• Enclosure: Designed for industrial environments, specific IP rating to be confirmed via datasheet.
• Mounting: Solid shaft for direct coupling applications.
• Power Supply: Voltage requirements to be confirmed via manufacturer datasheet.

Applications & compatibility

The Schneider Electric XCC1510PSM02Y incremental encoder finds application in a wide range of industrial automation systems. It is well-suited for use in CNC machinery, robotics, packaging equipment, and material handling systems where precise feedback on shaft rotation is essential for closed-loop control and accurate positioning.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1510PSM02Y or contact our technical team for cross-reference assistance with compatible XCC series components.
