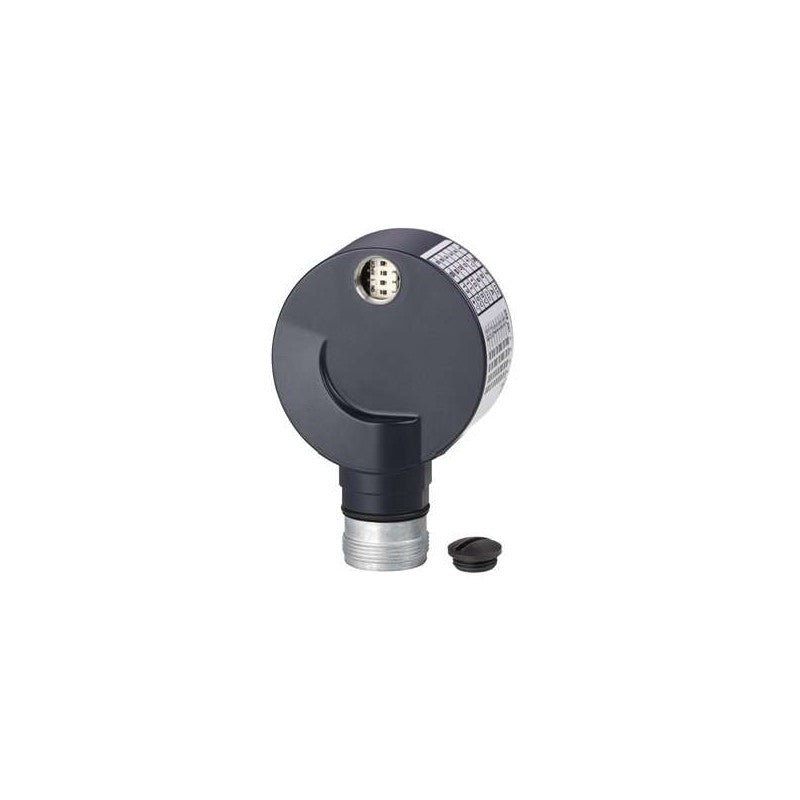

The Schneider Electric XCC1510PSM03X is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the Schneider Electric encoder family, this unit features a solid shaft and supports a wide range of resolution options, making it suitable for applications requiring detailed motion control. Its robust construction and reliable performance are characteristic of Schneider Electric's commitment to industrial-grade components.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Solid Shaft
• Shaft Diameter: 10 mm
• Resolution Options: 360 to 5760 points per revolution
• Voltage Supply: 5V
• Output Protocol: RS422
• Housing Style: Compact, suitable for integration into various machine designs.
• Operating Temperature Range: Consult manufacturer datasheet for specific environmental limits.

Applications & compatibility

This encoder is commonly employed in applications demanding accurate rotational measurement and feedback, such as servo motor control, robotics, automated assembly lines, and material handling equipment. Its RS422 output ensures robust signal transmission over longer distances, making it compatible with a wide array of industrial controllers and PLCs that support this standard.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1510PSM03X or contact our technical team for cross-reference assistance with compatible encoder solutions.
