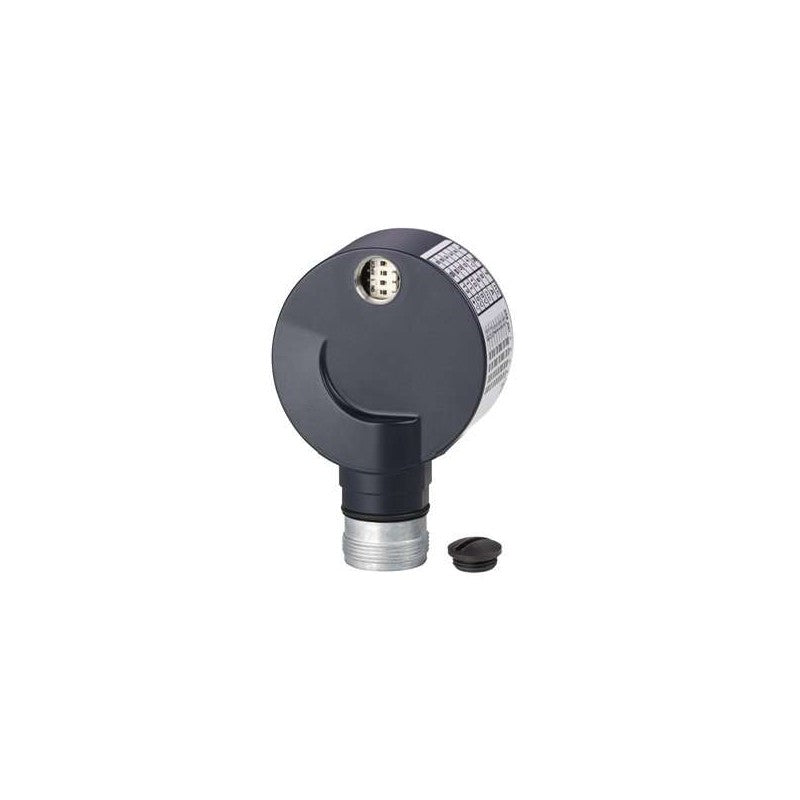

The Schneider Electric XCC1510PSM05X is an incremental encoder designed for precise position feedback in industrial automation systems. This encoder, part of the XCC series, features a solid shaft and operates with a 5V power supply, utilizing the RS422 communication protocol for reliable data transmission. Its robust construction and specified resolution make it suitable for demanding environments requiring accurate motion control.

Technical details

• Series: XCC
• Encoder Type: Incremental
• Shaft Type: Solid Shaft
• Shaft Diameter: 10 mm
• Resolution Options: 500 to 8000 points (pulses per revolution)
• Operating Voltage: 5V DC
• Communication Protocol: RS422
• Output Signal: Differential

Applications & compatibility

This encoder is commonly employed in applications requiring high-resolution position sensing, such as servo motor feedback, robotic arm control, and automated assembly machines. It is compatible with control systems and drives that support the RS422 interface and require incremental encoder input for closed-loop operation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1510PSM05X or contact our technical team for cross-reference assistance with compatible XCC series components.
