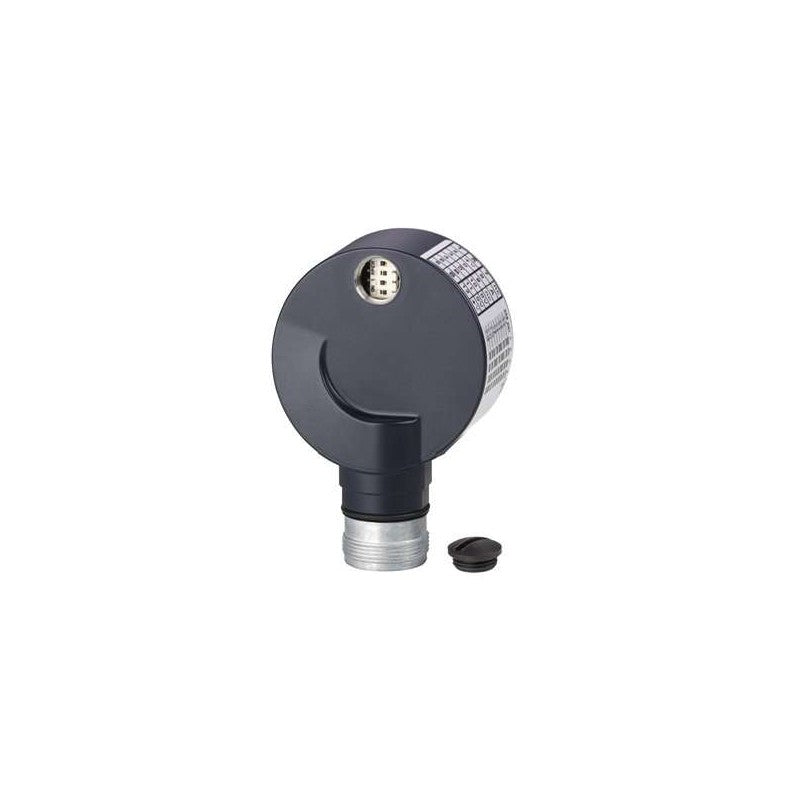

The Schneider Electric XCC1510PSM50X is an incremental encoder designed for precise position feedback in industrial automation systems. This encoder is part of the Modicon XCC series, known for its robust construction and reliable performance in demanding environments. It features a solid shaft suitable for direct mounting on motor shafts or other rotating components, facilitating accurate measurement of rotational speed and position.

Technical details

• Encoder Type: Incremental
• Shaft Type: Solid Shaft
• Shaft Diameter: 10 mm
• Resolution: 5000 to 80,000 points (configurable or selectable based on model variant)
• Operating Voltage: 5V DC
• Output Protocol: RS422
• Housing Size: 58 mm
• Output Signal: Quadrature signals with index pulse

Applications & compatibility

This encoder is commonly integrated into servo motor feedback systems, robotics, CNC machinery, and automated assembly lines where precise motion control is critical. Its RS422 output ensures noise immunity for reliable data transmission over longer distances, making it suitable for integration with various PLC and motion controller platforms.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCC1510PSM50X or contact our technical team for cross-reference assistance with compatible Modicon XCC series components.
