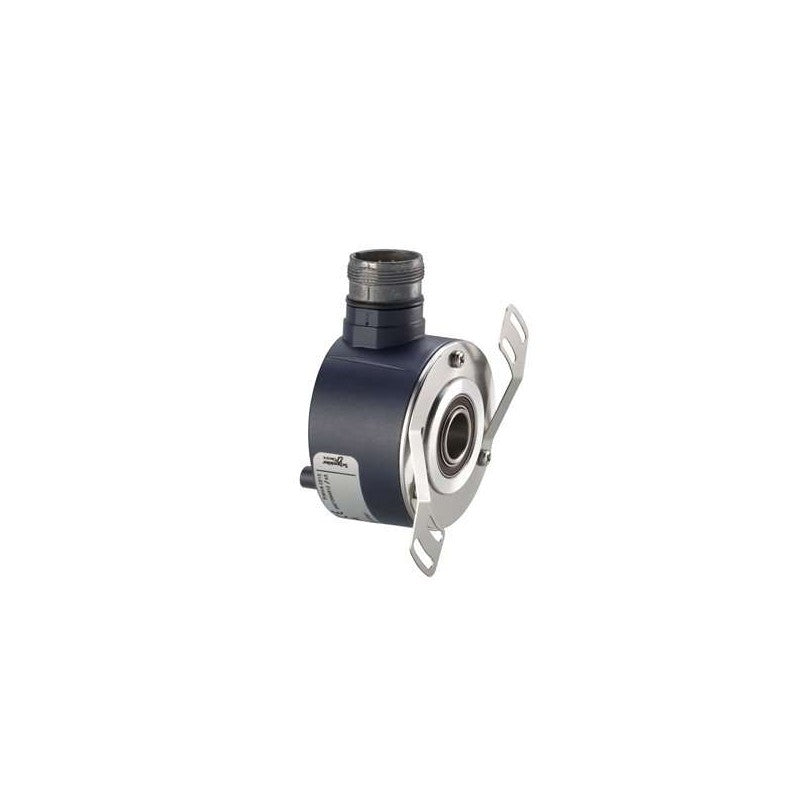

The Schneider Electric XCC1514TS03Y is an incremental encoder designed for precise position feedback in industrial automation systems. This encoder is part of the XCC series, featuring a through-shaft design suitable for direct mounting on motor shafts or other rotating equipment. Its robust construction and reliable performance make it a key component in motion control applications.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Through Shaft
• Shaft Diameter: 14 mm
• Resolution: 360 Pulses Per Revolution (PPR)
• Output Type: Push-Pull (also known as HTL or Line Driver output)
• Series: XCC Series
• Operating Principle: Optical sensing technology for accurate position tracking.
• Signal Output: Provides incremental A, B, and optionally Z (index) signals for directional and positional data.

Applications & compatibility

This encoder is commonly employed in applications requiring accurate speed and position monitoring, such as on servo motors, stepper motors, and general-purpose industrial machinery. It is well-suited for use in packaging machinery, material handling systems, robotics, and machine tool applications where precise motion control is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1514TS03Y or contact our technical team for cross-reference assistance with compatible XCC series components.
