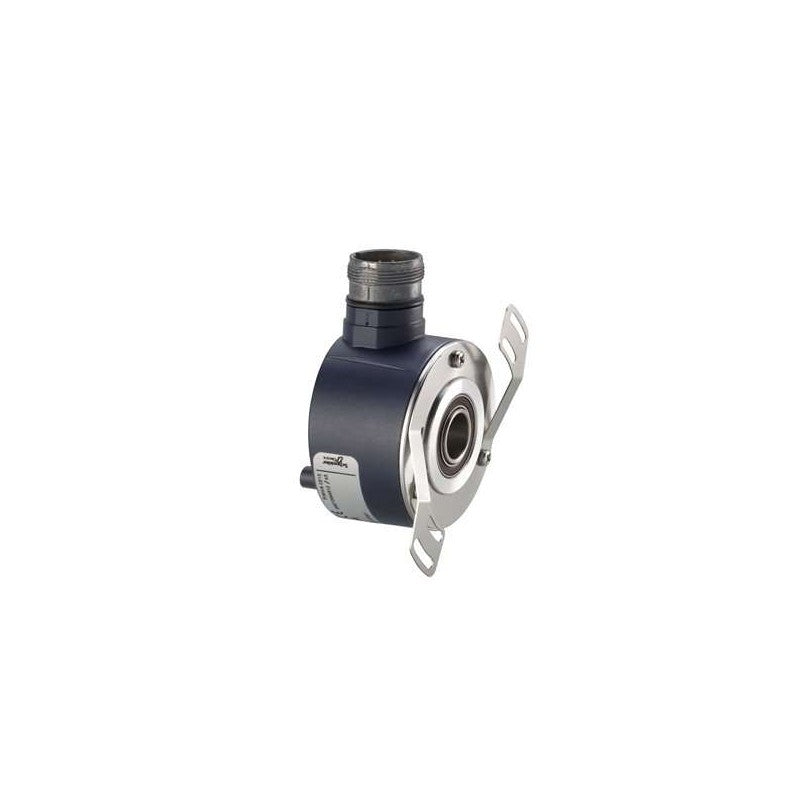

The Schneider Electric XCC1514TS25X is an incremental encoder designed for precise position feedback in industrial automation systems. This encoder is part of the XCC series, featuring a through-shaft design suitable for direct mounting on motor shafts or other rotating equipment. It provides 2500 pulses per revolution, offering high resolution for accurate motion control applications.

Technical details

• Series: XCC
• Encoder Type: Incremental
• Shaft Type: Through Shaft
• Shaft Diameter: 14 mm
• Resolution: 2500 Pulses Per Revolution (PPR)
• Operating Voltage: 5V DC
• Output Protocol: RS422
• Connection Type: Terminal Block (implied by TS in part number, verify with datasheet)

Applications & compatibility

This encoder is commonly utilized in applications requiring high-resolution position sensing, such as servo motor feedback, robotic arm control, and precision positioning systems. Its RS422 output makes it compatible with a wide range of industrial controllers and drives that support this differential signaling protocol.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1514TS25X or contact our technical team for cross-reference assistance with compatible XCC series components.
