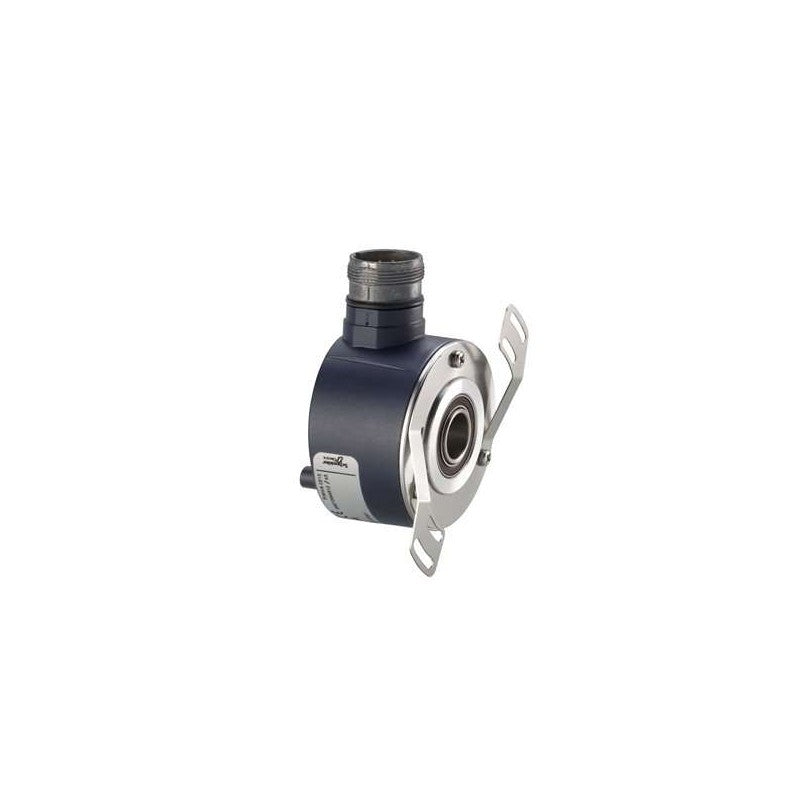

The Schneider Electric XCC1514TS50Y is an incremental encoder designed for precise position feedback in industrial automation systems. This encoder is part of the 58mm series, featuring a through-shaft configuration suitable for direct mounting on motor shafts or other rotating components. Its robust construction and high resolution make it ideal for applications requiring accurate motion control.

Technical details

• Series: 58mm
• Shaft Type: Through Shaft
• Shaft Diameter: 14 mm
• Resolution: 5000 Pulses Per Revolution (PPR)
• Output Type: Push-Pull (also known as HTL)
• Housing Diameter: 58 mm
• Connection Type: Typically requires a specific connector, consult datasheet for details.
• Operating Voltage: Consult manufacturer datasheet for specific voltage range.
• Maximum Speed: Consult manufacturer datasheet for specific speed rating.

Applications & compatibility

This encoder is commonly employed in applications demanding high accuracy and reliability, such as CNC machinery, robotics, packaging equipment, and automated assembly lines. Its 5000 PPR resolution provides detailed positional data, crucial for closed-loop control systems and precise movement synchronization. The push-pull output is compatible with a wide range of industrial controllers and drives that accept HTL signals.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1514TS50Y or contact our technical team for cross-reference assistance with compatible 58mm series encoder components.
