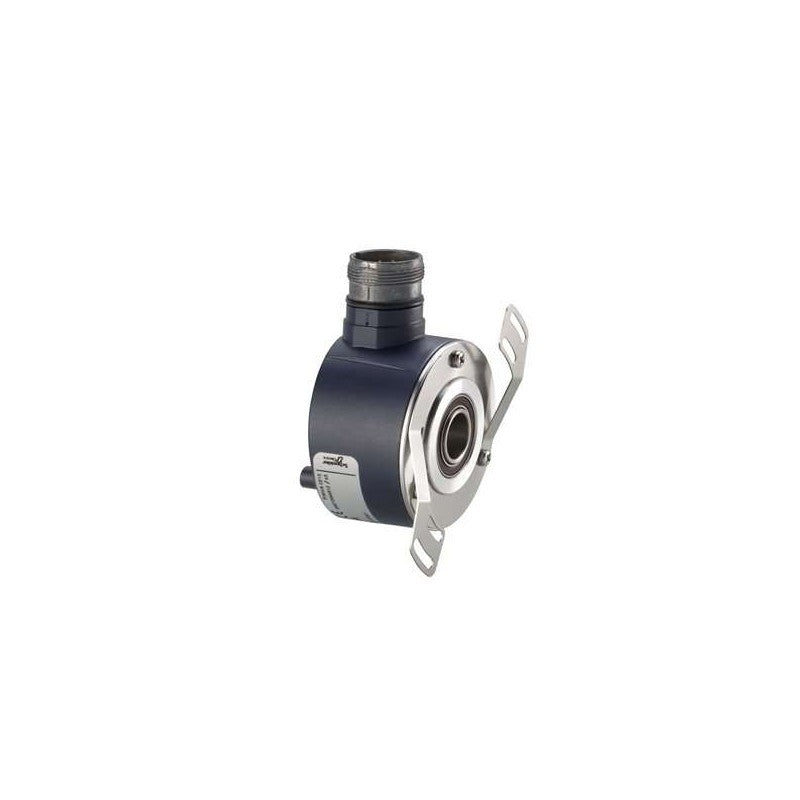

The Schneider Electric XCC1514TSM05X is an incremental encoder designed for precise position feedback in industrial automation systems. As part of Schneider Electric's encoder product lines, this unit features a through-shaft design suitable for direct coupling to motors and other rotating equipment. Its robust construction and reliable performance make it a key component in motion control applications requiring accurate rotational data.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Through Shaft
• Shaft Diameter: 14 mm
• Resolution Options: Configurable from 500 to 8000 pulses per revolution (PPR)
• Operating Voltage: 5V DC
• Output Interface: RS422 differential line driver
• Enclosure: Not specified, consult datasheet for environmental ratings
• Connection Type: Not specified, consult datasheet for connector details

Applications & compatibility

This encoder is commonly employed in applications demanding high-resolution feedback, such as servo motor control, robotics, automated assembly lines, and precision positioning systems. Its RS422 output is compatible with a wide range of industrial controllers, PLCs, and drives that support this standard differential signaling protocol, ensuring reliable data transmission over longer distances.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1514TSM05X or contact our technical team for cross-reference assistance with compatible encoder solutions.
