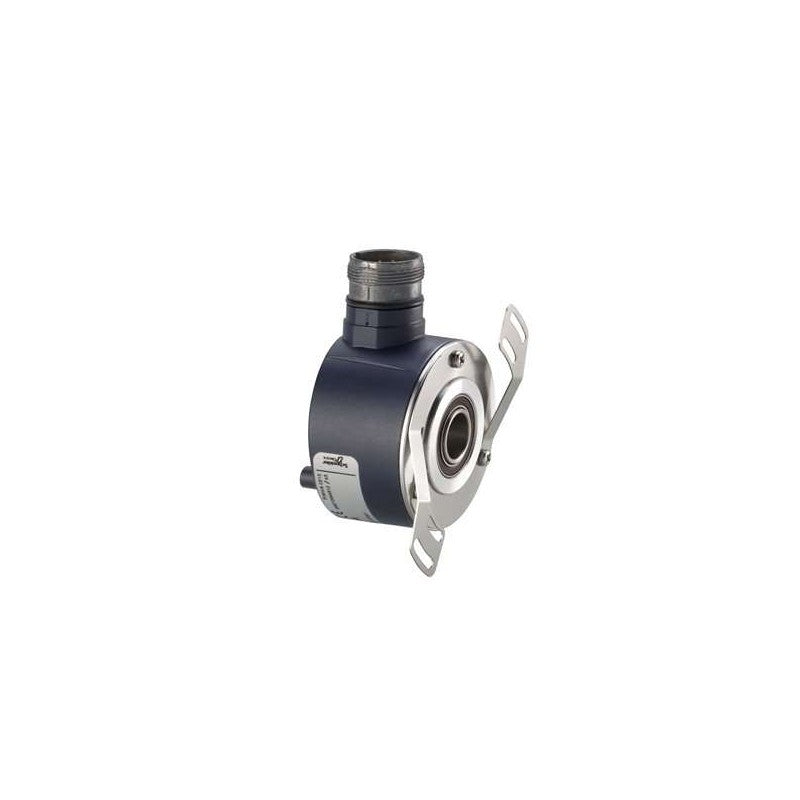

The Schneider Electric XCC1514TSM05Y is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the Schneider Electric encoder family, this unit features a through-shaft design and is engineered to provide reliable performance in demanding environments. Its robust construction and specified resolution make it suitable for applications requiring accurate motion control and monitoring.

Technical details

• Encoder Type: Incremental Encoder
• Shaft Type: Through Shaft
• Shaft Diameter: 14 mm
• Resolution Options: 500 to 8000 pulses per revolution (PPR)
• Output Signal Type: Push-Pull (also known as Line Driver or Differential Output)
• Housing Series: XCC (specific series designation from part number)
• Model Designation: 1514TSM05Y (specific model identifier)
• Electrical Interface: Push-Pull output is compatible with a wide range of control systems and PLCs that accept differential signals.

Applications & compatibility

This incremental encoder is commonly employed in applications such as motor feedback systems, robotics, automated assembly lines, and material handling equipment. Its 14mm through-shaft is designed for direct mounting onto motor shafts or other rotating components, ensuring accurate data acquisition for control loops in CNC machinery, packaging equipment, and printing presses.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1514TSM05Y or contact our technical team for cross-reference assistance with compatible encoder solutions.
