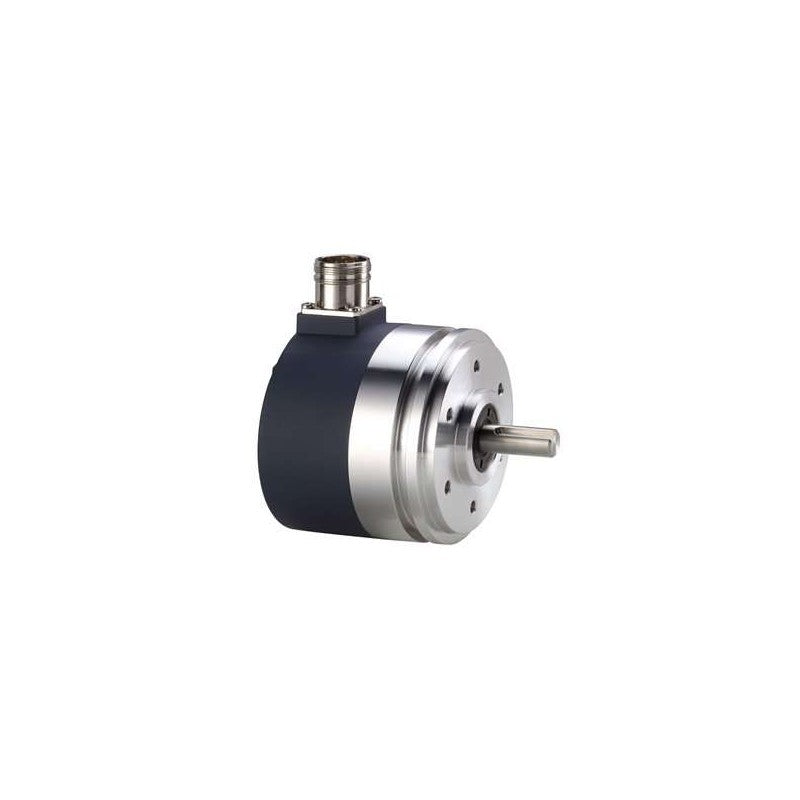

The Schneider Electric XCC1912PS11KN is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the XCC series, this encoder features a solid shaft suitable for direct mounting and provides 1024 pulses per revolution for detailed motion control. Its push-pull output interface ensures compatibility with a wide range of modern control systems.

Technical details

• Series: XCC
• Encoder Type: Incremental
• Shaft Type: Solid Shaft
• Shaft Diameter: 12 mm
• Resolution: 1024 Pulses Per Revolution (PPR)
• Output Interface: Push-Pull (also known as HTL or TTL with line driver)
• Operating Voltage: Typically 5-30 VDC for push-pull outputs; verify specific voltage requirements with the manufacturer's datasheet.
• Connection Type: M12 connector (standard for this series, verify pinout with datasheet)

Applications & compatibility

This encoder is commonly employed in applications requiring accurate rotational feedback, such as motor feedback for variable speed drives, robotics, automated assembly lines, and material handling equipment. Its robust design and push-pull output make it suitable for integration with PLCs and motion controllers from various manufacturers.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCC1912PS11KN or contact our technical team for cross-reference assistance with compatible XCC series components.
