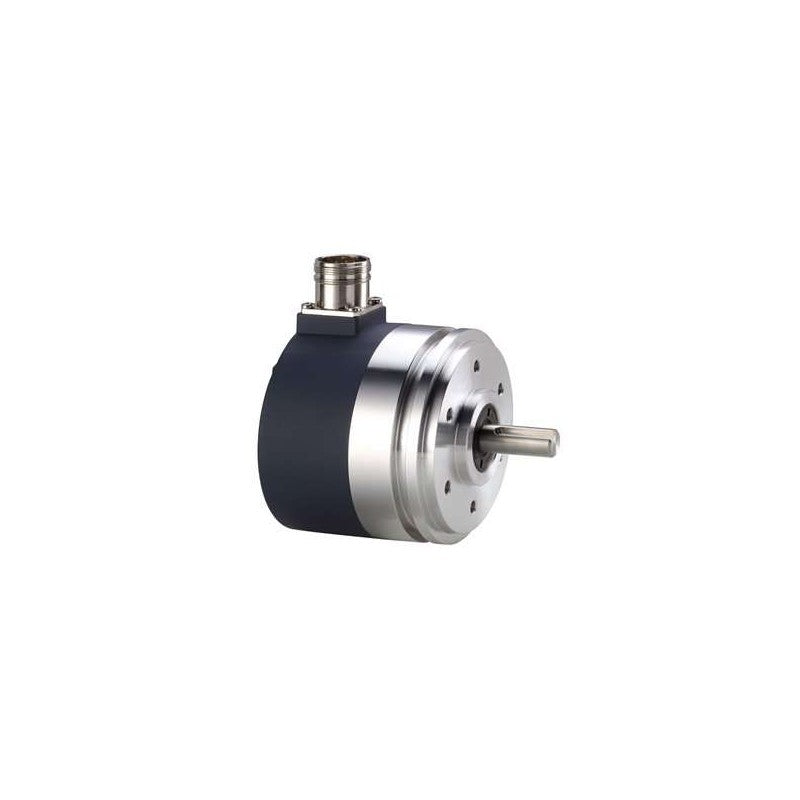

The Schneider Electric XCC1912PS25KN is an incremental encoder designed for precise position feedback in industrial automation systems. As part of the XCC series, this encoder features a solid shaft configuration, commonly utilized in applications requiring robust mechanical integration with motor shafts or other rotating components. Its 12mm shaft diameter ensures compatibility with a wide range of standard mounting hardware and motor interfaces.

Technical details

• Series: XCC
• Encoder Type: Incremental
• Shaft Type: Solid Shaft
• Shaft Diameter: 12 mm
• Resolution: 2500 Pulses Per Revolution (PPR)
• Output Type: Push-Pull (also known as differential line driver output)
• Operating Principle: Optical
• Connection Type: M12 connector (standard for this series, verify datasheet for specific pinout)

Applications & compatibility

This Schneider Electric incremental encoder is suitable for integration into various motion control applications, including CNC machinery, robotics, packaging equipment, and automated assembly lines where accurate rotational speed and position monitoring are critical. Its push-pull output is compatible with a wide array of modern PLC inputs and servo drive controllers that support differential signaling.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCC1912PS25KN or contact our technical team for cross-reference assistance with compatible XCC series components.
